    NC Servo 380V Coil Handling Equipment, 18KW Straightener Feeder And Uncoiler

    Ask Lasest Price
    Brand Name : RUIHUI
    Model Number : MAC5-600H
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

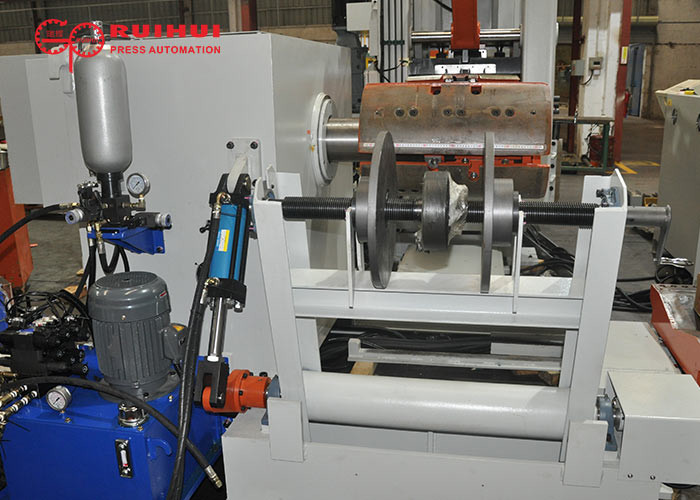

    NC Servo 380V Coil Handling Equipment, 18KW Straightener Feeder And Uncoiler

    Feeder rollers and level rollers have undergone special heat treatment for high precision leveling. ,

    hard-chrome plated and ground with min. HRC 60°,Uses in the process wear-resisting,The service life is long.


    Special order options available for all press sizes,ex save material with the Zig Zag Electronic Roller Feeder.


    Standard Accessory:
    1. upper roller adjustment by digital watch .
    2. Coil width adjusted by double handle wheel with precise screw rod .
    3. Pass line can be adjusted by the lifter driven by motor .
    4. Coil side guide use one set hollow rolls mechanical back gauge device.
    5. Pinch roll and straightener roll material:high-strength alloy bearing steel with hard chrome plating.
    6. Hydraulic coil arm device .
    7. Motorized Snuber roll .
    8. hydraulic guider .
    9. hydraulic peeler table .
    10. Mitsubishi PLC control feeding program from Japan .
    11. Feed accuracy controlled by Japan YASKAWA servo motor with precise planetary reducer .

    MAC5 Series 3 in 1 Coil Feeder,Straghtener Feeder, Servo Feeder (Width within 1300mm,thickness within 9mm

    Specification:


    Specification
    ModelMAC5-600HMAC5-800HMAC5-1000HMAC5-1300H
    Stock Width(mm)100~600100~600100~1000100~1300
    Stock Thickness(mm)0.8~9.00.8-9.00.8-9.00.8~9.0
    Max.Coil Weight(kg)500070001000010000
    Max.Coil O.D.(mm)1400140014001400
    Coil I.D.(mm)508508508508
    Feed Length(mm)~500*~500*~500*~500*
    Max.Line Speed(m/min)22222222
    Work Roll Number(piece)upper 5upper 5upper 5upper5
    down 4down 4down 4down 4
    Feed Roll number(set)Upper 1/down1Upper 1/down1Upper 1/down1Upper 1/down1
    Main MotorAC22AC22AC7.5AC30
    Mandrel ExpansionHydrauilcHydrauilcHydrauilcHydrauilc
    Reel Motor(kw)5.57.51122
    Power(v)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.50.50.50.5

    Straightening Performance
    ModelMAC5-600HMAC5-800HMAC5-1000MAC5-1300
    Stock Thickness (mm)0.860080010001300
    1.4
    1.6
    1.8
    2.0
    2.3
    2.81030
    3.2800
    4.0800720
    4.5648648648
    5.0530530530530
    6.0450450450450
    7.0331331331331
    8.0253253253253
    9.0200200200200

    NC Servo 380V Coil Handling Equipment, 18KW Straightener Feeder And UncoilerNC Servo 380V Coil Handling Equipment, 18KW Straightener Feeder And UncoilerNC Servo 380V Coil Handling Equipment, 18KW Straightener Feeder And Uncoiler


    FAQ:


    Q1:What kinds of machines do you have?

    Our main products are:Nc Servo Roll Feeder,Uncoiler, Straightener, 3 in1 Straightener

    Feeder,Transfer systems,Press Feeding Line., etc

    Q2:Is your equipment standard or customized?

    Both, we can OEM & ODM with customers.

    Q3:What are your equipments certification?

    All our items are coming with CE certifications.

    Q4:How did your company's quality system work?

    “QUALITY IS OUR CULTURE” Our quality is not the best in the world, and the price is not the

    cheapest. But we can provide you excellent products to defeat your competitors.

    Q5:How long is the warranty period of the machine?

    We offer free service with a warranty period of one year, If it is operate in reasonable, the

    machine can be used more than 10 years.

    Q6: Is it possible to be a foreign agent and distributor?

    If you are confidence and excellent service for after-sales, then welcome to be our agents or

    distributors all over the world.

    Q7:What’s your payment?

    T/T,D/P,L/C,Western Union., etc

    Q8:What’s the delivery?

    “TIME IS GOLD” for you and for us, so we have professional team work and production line can

    make nice quality in short time.


    Service:


    1. Pre-Sales Service:We have professional designers to meet the different requirement.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.

    MAC5 Series 3 In 1 Coil Feeder, Decoiler Straghtener Feeder, Servo Feeder
