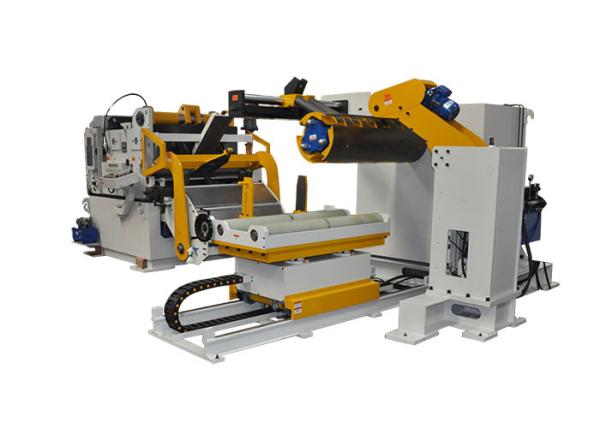

Light Deadweight 22m/Min 0.5Mpa Intelligent 3 In 1 Feeder

    Buy cheap Light Deadweight 22m/Min 0.5Mpa Intelligent 3 In 1 Feeder from wholesalers

    Buy cheap Light Deadweight 22m/Min 0.5Mpa Intelligent 3 In 1 Feeder from wholesalers
    • Buy cheap Light Deadweight 22m/Min 0.5Mpa Intelligent 3 In 1 Feeder from wholesalers
    • Buy cheap Light Deadweight 22m/Min 0.5Mpa Intelligent 3 In 1 Feeder from wholesalers

    Light Deadweight 22m/Min 0.5Mpa Intelligent 3 In 1 Feeder

    Ask Lasest Price
    Brand Name : RUIHUI
    Model Number : MAC5-1300F
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Light Deadweight 22m/Min 0.5Mpa Intelligent 3 In 1 Feeder


    Famous Supplier Of Three In One Feeder -RUI HUI Intelligent Technology 3 in 1 feeder Price
    The introduction of Japanese technology research and development, design, manufacturing, sales, service as one of the diversified businesses, the company's main: feed servo feeder, feeder, feeder, new wheel tape feeder, high-speed roller tape feeder, servo feeder, servo swing feeder, air feeder, swing air tape feeder, triad servo feeder, combined rack straightening machine, precision leveling machine, plate straightening machine, material, light material, heavy material frame, double materials planes, print material rack punch press automation modification, etc.

    Product features:

    1. Special leveling roller is adopted to effectively reduce the rigid plate and improve the material leveling accuracy.

    2. Electric adjustment and correction amount: Electric adjustment of correction amount replaces the previous manual adjustment of turbine correction amount, making the operation easier.

    3. The electronic control part adopts European system: security, stability and high durability.

    4. The conveyor route layout of the feeder is flexible and has wide adaptability, which can transport a variety of materials;

    5. Fast conveying speed, long conveying distance, large conveying capacity and low energy consumption;

    6. Simple structure, light dead weight;

    7. The feeder can continuously transport, work smoothly, and do not damage the transported materials; Simple operation, safe and reliable, easy maintenance, low maintenance management cost.


    MAC5 Series 3 in 1 Coil Feeder,Straghtener Feeder, Servo Feeder (Width within 1300mm,thickness within 9mm


    ModelMAC5-600FMAC5-800FMAC5-1000FMAC5-1300F
    Stock Width(mm)100~600100~600100~1000100~1300
    Stock Thickness(mm)0.8~9.00.8-9.00.8-9.00.8~9.0
    Max.Coil Weight(kg)500070001000010000
    Max.Coil O.D.(mm)1400140014001400
    Coil I.D.(mm)508508508508
    Feed Length(mm)~500*~500*~500*~500*
    Max.Line Speed(m/min)22222222
    Work Roll Number(piece)upper 5upper 5upper 5upper5
    down 4down 4down 4down 4
    Feed Roll number(set)Upper 1/down1Upper 1/down1Upper 1/down1Upper 1/down1
    Main MotorAC22AC22AC7.5AC30
    Mandrel ExpansionHydrauilcHydrauilcHydrauilcHydrauilc
    Reel Motor(kw)5.57.51122
    Power(v)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.50.50.50.5

    ModelMAC5-600FMAC5-800FMAC5-1000FMAC5-1300F
    Stock Thickness (mm)0.860080010001300
    1.4
    1.6
    1.8
    2.0
    2.3
    2.81030
    3.2800
    4.0800720
    4.5648648648
    5.0530530530530
    6.0450450450450
    7.0331331331331
    8.0253253253253
    9.0200200200200

    FAQ:


    Q1:What kinds of machines do you have?

    Our main products are:Nc Servo Roll Feeder,Uncoiler, Straightener, 3 in1 Straightener

    Feeder,Transfer systems,Press Feeding Line., etc

    Q2:Is your equipment standard or customized?

    Both, we can OEM & ODM with customers.

    Q3:What are your equipments certification?

    All our items are coming with CE certifications.

    Q4:How did your company's quality system work?

    “QUALITY IS OUR CULTURE” Our quality is not the best in the world, and the price is not the

    cheapest. But we can provide you excellent products to defeat your competitors.

    Q5:How long is the warranty period of the machine?

    We offer free service with a warranty period of one year, If it is operate in reasonable, the

    machine can be used more than 10 years.

    Q6: Is it possible to be a foreign agent and distributor?

    If you are confidence and excellent service for after-sales, then welcome to be our agents or

    distributors all over the world.

    Q7:What’s your payment?

    T/T,D/P,L/C,Western Union., etc

    Q8:What’s the delivery?

    “TIME IS GOLD” for you and for us, so we have professional team work and production line can

    make nice quality in short time.


    Service:


    1. Pre-Sales Service:We have professional designers to meet the different requirement.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
