Hydraulic Steel Coil Decoiler Straightener Feeder For Press Machine

    Buy cheap Hydraulic Steel Coil Decoiler Straightener Feeder For Press Machine from wholesalers

    Buy cheap Hydraulic Steel Coil Decoiler Straightener Feeder For Press Machine from wholesalers
    • Buy cheap Hydraulic Steel Coil Decoiler Straightener Feeder For Press Machine from wholesalers
    • Buy cheap Hydraulic Steel Coil Decoiler Straightener Feeder For Press Machine from wholesalers
    • Buy cheap Hydraulic Steel Coil Decoiler Straightener Feeder For Press Machine from wholesalers

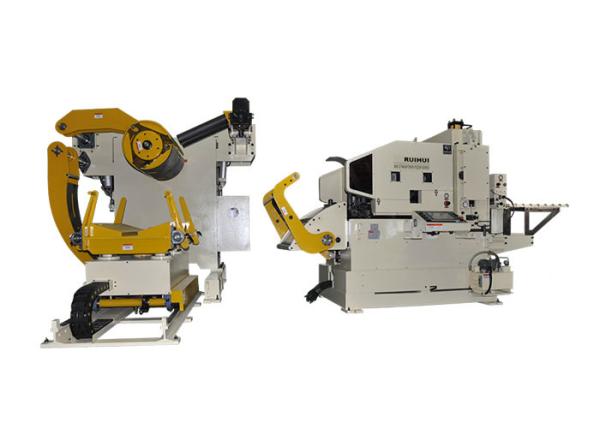

    Hydraulic Steel Coil Decoiler Straightener Feeder For Press Machine

    Ask Lasest Price
    Brand Name : RUIHUI
    Model Number : MACJ2-800A
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Hydraulic Steel Coil Decoiler Straightener Feeder For Press Machine

    Straightener Feeder Hydraulic Metal Steel Coil Decoiler Machine Auto Feeder For Press Machine

    RUIHUI a well-known brand manufacturer of feeder in China, specializing in punch manufacturing and stamping automation equipment, integrating independent R&D, manufacturing, sales and service. Carefully provide customers with advanced production technology and high-quality feeder, three-in-one feeder, punch feeder, offset feeder, two-in-one feeder, precision leveler, leveler, material rack, punch manipulator, three-dimensional manipulator and two-dimensional manipulator automatic production line free customization scheme, replacing manual feeding equipment, helping you to improve product accuracy and output, and reduce production cost.

    Feature description:
    1. Reduce the number of operators (one person can see multiple machine tools)
    2. Improve production efficiency and reduce product defect rate
    3. Improve the utilization rate of materials (traditionally, it is generally sent by sheet materials, and the head and tail of each piece of materials are wasted)
    4, safe operation, no injuries 5. Reduce enterprise costs and high returns



    ModelMAC2-600AMAC2-800AMAC2-1000A
    Width of Material(mm)75~60075~80075~1000
    Thickness of Material(mm)0.3~3.20.3~3.20.3~3.2
    Max.Coil Weight(kg)5000*5000*5000*
    Coil I.D(mm)508508508
    Coil.O.D(mm)150015001500
    Max.Line speed(m/mim)16~2416~2416~24
    Feed Accuracy(mm)±0.15±0.15±0.15
    Feed Rollup 1 /down 1up 1 /down 1up 1 /down 1
    Work Rollup 4 /down 3up 4 /down 3up 4 /down 3
    Back pressure Rollprovidedprovidedprovided
    Power Supply3Phase 220V/380V/50HZ
    Air Supply(kg/cm2)5kg/cm25kg/cm25kg/cm2
    Uncoll ExpansionHydraulicHydraulicHydraulic
    Main Motor(kw)AC7.5AC7.5AC7.5
    Uncoil Motor(kw)AC2.2AC2.2AC2.2

    Straightening Performance:

    ModelMACJ2-600AMACJ2-800AMACJ2-1000A
    Stock Thickness(mm)0.36008001000
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6
    1.8
    2.0
    2.3610
    2.8380
    3.2630600280

    *The avove flgures are the material having yield strength of 245N/mm2 max.


    RUIHUI founded in 2000, the technology of automation periphery is from Japan.Now RUIHUI is a Japanese brand and the same technique of sheet metal stamping surrounding automation equipment manufacturer. RUIHUI has been learning Japan and Germany technology, and useing high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and reihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industy,and investment less.

    FAQ:


    Q1:What kinds of machines do you have?

    Our main products are:Nc Servo Roll Feeder,Uncoiler, Straightener, 3 in1 Straightener

    Feeder,Transfer systems,Press Feeding Line., etc

    Q2:Is your equipment standard or customized?

    Both, we can OEM & ODM with customers.

    Q3:What are your equipments certification?

    All our items are coming with CE certifications.

    Q4:How did your company's quality system work?

    “QUALITY IS OUR CULTURE” Our quality is not the best in the world, and the price is not the

    cheapest. But we can provide you excellent products to defeat your competitors.

    Q5:How long is the warranty period of the machine?

    We offer free service with a warranty period of one year, If it is operate in reasonable, the

    machine can be used more than 10 years.

    Q6: Is it possible to be a foreign agent and distributor?

    If you are confidence and excellent service for after-sales, then welcome to be our agents or

    distributors all over the world.

    Q7:What’s your payment?

    T/T,D/P,L/C,Western Union., etc

    Q8:What’s the delivery?

    “TIME IS GOLD” for you and for us, so we have professional team work and production line can

    make nice quality in short time.

    Service:

    1. Pre-Sales Service:We have professional designers to meet the different requirement.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
