    RUIHUI AC 3.7KW 3 In 1 24m/Min Coil Feeder Straightener

    Ask Lasest Price
    Brand Name : RUIHUI
    Model Number : MAC3-800
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    RUIHUI AC 3.7KW 3 In 1 24m/Min Coil Feeder Straightener

    RUIHUI Machinery 3 in 1 MAC-600 Electric Servo Feeder For Metal Sheet Process Leveler


    RUIHUI founded in 2000, the technology of automation periphery is from Japan.Now RUIHUI is a Japanese brand and the same technique of sheet metal stamping surrounding automation equipment manufacturer. RUIHUI has been learning Japan and Germany technology, and useing high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and reihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industy,and investment less.

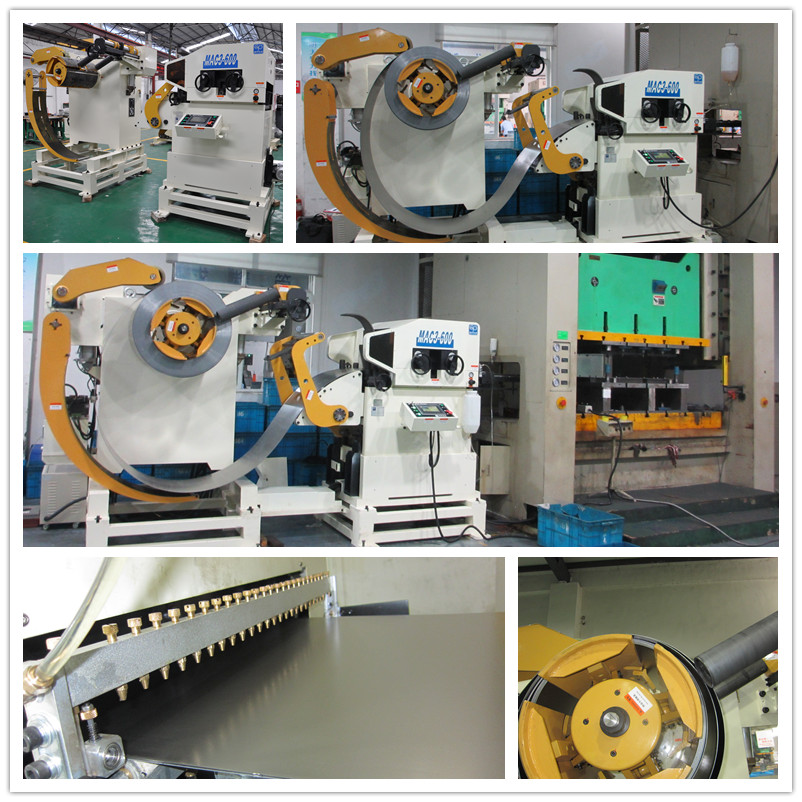

    This is a compact feeding line, with decoiler, straightener and feeder machine in one combination unit.
    It used to uncoiling metal strip from coil stock, straightening it to required flatness and feed it to press machine for stamping process.

    straightener feeder machine 3 in 1:

    1. Hydraulic Decoiler

    2. Straightener

    3 NC servo feeder

    4. Side guide

    5. Hydraulic system

    6 electrical control system



    ModelMAC3-400MAC3-600MAC3-800MAC3-1000
    Stock Width(mm)50~40050~60070~80070~1000
    Stock Thickness(mm)0.3~4.50.3~4.50.3~4.50.3~4.5
    Max.Coil Weight(kg)50005000500070007000
    Max.Coil O.D.(mm)Φ1400Φ1400Φ1400Φ1400
    Coil I.D.(mm)Φ508Φ508Φ508Φ508
    Feed Length(mm)~500*~500*~500*~500*
    Max.Line Speed(m/min)16~2416~2416~2416~24
    Work Roll Number(piece)up 4 / down 3up 4 / down 3up 4 / down 3up 4 / down 3
    Feed Roll number(set)1111
    Main MotorAC4.4AC4.4AC5.5C7.5
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)2.22.22.23.73.7
    Power(v)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49

    Straightening Performance:

    Model

    MAC3-400

    MAC3-600

    MAC3-800

    MAC3-1000

    Stock Thickness
    (mm)

    0.3~0.8

    400

    600

    800

    1000

    1.0

    750

    1.2

    700

    600

    1.6

    590

    480

    430

    1.8

    500

    420

    380

    2.0

    430

    370

    330

    2.3

    360

    320

    290

    2.8

    370

    290

    250

    230

    3.2

    300

    250

    220

    200

    4.5

    160

    160

    150

    110

    *The avove flgures are the material having yield strength of 245N/mm2 max.


    FAQ:


    Q1:What kinds of machines do you have?

    Our main products are:Nc Servo Roll Feeder,Uncoiler, Straightener, 3 in1 Straightener

    Feeder,Transfer systems,Press Feeding Line., etc

    Q2:Is your equipment standard or customized?

    Both, we can OEM & ODM with customers.

    Q3:What are your equipments certification?

    All our items are coming with CE certifications.

    Q4:How did your company's quality system work?

    “QUALITY IS OUR CULTURE” Our quality is not the best in the world, and the price is not the

    cheapest. But we can provide you excellent products to defeat your competitors.

    Q5:How long is the warranty period of the machine?

    We offer free service with a warranty period of one year, If it is operate in reasonable, the

    machine can be used more than 10 years.

    Q6: Is it possible to be a foreign agent and distributor?

    If you are confidence and excellent service for after-sales, then welcome to be our agents or

    distributors all over the world.

    Q7:What’s your payment?

    T/T,D/P,L/C,Western Union., etc

    Q8:What’s the delivery?

    “TIME IS GOLD” for you and for us, so we have professional team work and production line can

    make nice quality in short time.


    Service:


    1. Pre-Sales Service:We have professional designers to meet the different requirement.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
