Brand Name : | RUIHUI |
Model Number : | MAC3-800 |
Certification : | CE, ISO certification |
Payment Terms : | L/C, D/A, D/P |
Supply Ability : | 10 Sets Per Month |
Delivery Time : | 30 work days |

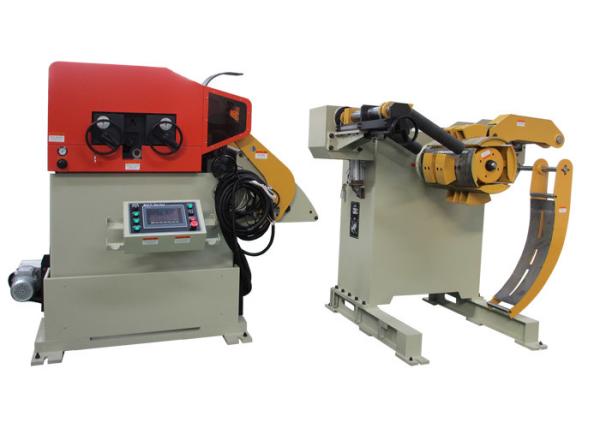

Hot selling with high quality 3 in 1 decoiler straightener feeder
The three-in-one feeder has a one-year warranty. You can buy it
with confidence and use it with confidence. It will be solved
within 24 hours in the vicinity of the after-sales service and
within 48 hours in other provinces. The quality and service are
guaranteed, and the risk is low.
Features of stamping three-in-one feeder:
1. The innovative mechanical mechanism reduces the working space
required by the whole machine to a small amount.
2. The operation panel adopts a color LCD display, a large touch
screen, a high-definition operation screen, and the operation
safety protection system can be operated with peace of mind even
for the first time users.
3. The humanized design of the sound operating system shortens the
preparation work, and the advanced automatic diagnosis system helps
the operator to quickly grasp the operating performance of the
machine.
4. Imported servo system is adopted to ensure high-precision
feeding.
5. The feeding roller and the leveling wheel are specially
heat-treated, with high hardness (HRC62 degrees), wear resistance
and long life.
6. The upper and lower leveling back pressure rollers specially
designed for strong thick plates can achieve the guaranteed stress
relief effect.
7. The design concept of doubling the safety factor will prolong
the service life of the equipment.
8. The mechanism motion control system adopts PLC electrical
control system, which is sensitive in action and reliable in
performance;
Model | MAC3-400 | MAC3-600 | MAC3-800 | MAC3-1000 | |
Stock Width(mm) | 50~400 | 50~600 | 70~800 | 70~1000 | |
Stock Thickness(mm) | 0.3~4.5 | 0.3~4.5 | 0.3~4.5 | 0.3~4.5 | |
Max.Coil Weight(kg) | 5000 | 5000 | 5000 | 7000 | 7000 |
Max.Coil O.D.(mm) | Φ1400 | Φ1400 | Φ1400 | Φ1400 | |
Coil I.D.(mm) | Φ508 | Φ508 | Φ508 | Φ508 | |
Feed Length(mm) | ~500* | ~500* | ~500* | ~500* | |
Max.Line Speed(m/min) | 16~24 | 16~24 | 16~24 | 16~24 | |
Work Roll Number(piece) | up 4 / down 3 | up 4 / down 3 | up 4 / down 3 | up 4 / down 3 | |
Feed Roll number(set) | 1 | 1 | 1 | 1 | |
Main Motor | AC4.4 | AC4.4 | AC5.5 | C7.5 | |
Mandrel Expansion | hydraulic | hydraulic | hydraulic | hydraulic | |
Reel Motor(kw) | 2.2 | 2.2 | 2.2 | 3.7 | 3.7 |
Power(v) | 3 Phase 220V/380V/50HZ | ||||
Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 |
Straightening Performance:
Model | MAC3-400 | MAC3-600 | MAC3-800 | MAC3-1000 | |
Stock Thickness (mm) | 0.3~0.8 | 400 | 600 | 800 | 1000 |
1.0 | 750 | ||||
1.2 | 700 | 600 | |||
1.6 | 590 | 480 | 430 | ||
1.8 | 500 | 420 | 380 | ||
2.0 | 430 | 370 | 330 | ||
2.3 | 360 | 320 | 290 | ||
2.8 | 370 | 290 | 250 | 230 | |
3.2 | 300 | 250 | 220 | 200 | |
4.5 | 160 | 160 | 150 | 110 |
*The avove flgures are the material having yield strength of 245N/mm2 max.
FAQ:
Q1:What kinds of machines do you have?
Service:
1. Pre-Sales Service:We have professional designers to meet the different requirement.
![]() |
