Brand Name : | RUIHUI |
Model Number : | MAC4-900 |
Certification : | CE, ISO certification |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, T/T |
Supply Ability : | 30 Sets Per Month |
Delivery Time : | 30 work days |

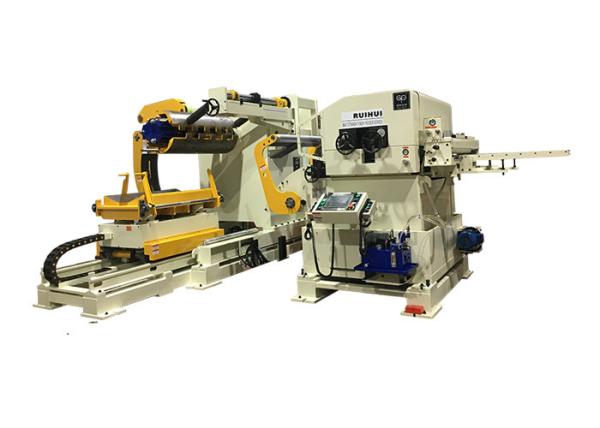

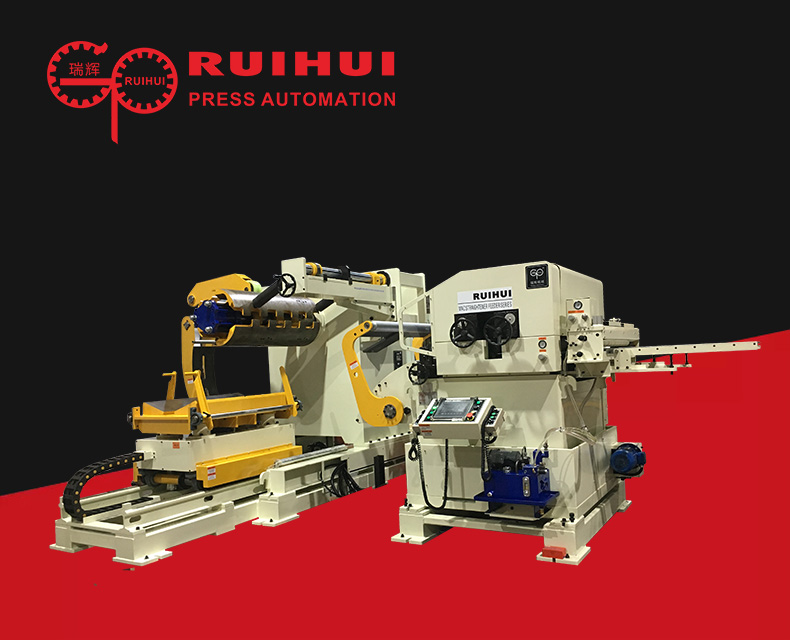

3 In 1 Combined Decoiler Straightener Feeder For Steel Coil Flattening For Press Machine For Stamping Metal Parts
3 in 1 uncoiler straightener feeder is the high quality fully automatic equipment that integrates the straightening and feeding processes into a single machine, which has the advantage of superior straightening capabilities and simple operation. It can be incorporated into the press lines, cut-to-length lines and stamping systems for coil materials of all manufacturers.
Time-saving, space-saving, and labor-saving features embody the high economical use of haiwei coil uncoiler straightener feeder. The European servo system and special straightening rolls enable 3 in 1 uncoiler straightener feeder to achieve consistently excellent straightening results.The efficiency of feeding also has been enhanced, because feed roll pressure is easily adjusted by using an air cylinder.
According to coil material features, a variety of coil feeder that you can opt for perfectly meet the different need.
Specification:
Model | MAC3-400 | MAC3-600 | MAC3-800 | MAC3-1000 | |
Stock Width(mm) | 50~400 | 50~600 | 70~800 | 70~1000 | |
Stock Thickness(mm) | 0.3~4.5 | 0.3~4.5 | 0.3~4.5 | 0.3~4.5 | |
Max.Coil Weight(kg) | 5000 | 5000 | 5000 | 7000 | 7000 |
Max.Coil O.D.(mm) | Φ1400 | Φ1400 | Φ1400 | Φ1400 | |
Coil I.D.(mm) | Φ508 | Φ508 | Φ508 | Φ508 | |
Feed Length(mm) | ~500* | ~500* | ~500* | ~500* | |
Max.Line Speed(m/min) | 16~24 | 16~24 | 16~24 | 16~24 | |
Work Roll Number(piece) | up 4 / down 3 | up 4 / down 3 | up 4 / down 3 | up 4 / down 3 | |
Feed Roll number(set) | 1 | 1 | 1 | 1 | |
Main Motor | AC4.4 | AC4.4 | AC5.5 | C7.5 | |
Mandrel Expansion | hydraulic | hydraulic | hydraulic | hydraulic | |
Reel Motor(kw) | 2.2 | 2.2 | 2.2 | 3.7 | 3.7 |
Power(v) | 3 Phase 220V/380V/50HZ | ||||
Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 |
Straightening Performance:
Model | MAC3-400 | MAC3-600 | MAC3-800 | MAC3-1000 | |
Stock Thickness (mm) | 0.3~0.8 | 400 | 600 | 800 | 1000 |
1.0 | 750 | ||||
1.2 | 700 | 600 | |||
1.6 | 590 | 480 | 430 | ||
1.8 | 500 | 420 | 380 | ||
2.0 | 430 | 370 | 330 | ||
2.3 | 360 | 320 | 290 | ||
2.8 | 370 | 290 | 250 | 230 | |
3.2 | 300 | 250 | 220 | 200 | |
4.5 | 160 | 160 | 150 | 110 |
*The avove flgures are the material having yield strength of 245N/mm2 max.
FAQ:
Q1:What kinds of machines do you have?
Service:
1. Pre-Sales Service:We have professional designers to meet the different requirement.
![]() |
