    Precision Metal Plate Roller , Straightening Machine High Speed Roller Feeder

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    Price : Negotiable
    • Product Details
    • Company Profile

    Precision Metal Plate Roller , Straightening Machine High Speed Roller Feeder

    Metal Plate Roller, Straightening Machine Metal, High Speed Roller Feeder, Imported feeder, Feed rack

    http://www.ruihui.net
    The high-speed roller feeder is one of the most widely used feeders in the stamping industry. It is mainly fast and has high precision, and has good effects for continuous stamping.
    The roller feeder is affordable, has a low failure rate, and has good stability. It is currently the most used feeding equipment with a punch press, but the roller feeder operation is much more complicated than the NC feeder.
    In actual use, the adjustment of the feed step requires manual manual adjustment, instead of simply inputting the feed step on the touch screen like the NC feeder.
    The feeding step of the roller feeder is also called the feeding length, which refers to the length of the feeding material of the feeding machine to the punching machine. When actually adjusting, firstly loosen the feeding step fixing bolt on the eccentric disk of the feeding machine, and then rotate the adjusting screw to The required feed length position, and finally the feed step fixing bolt can be locked.
    Note: The vernier scale on the eccentric disk of the roller feeder is coarse adjustment, and the scale ring is fine-tuned (including a fine adjustment of 0.04mm).

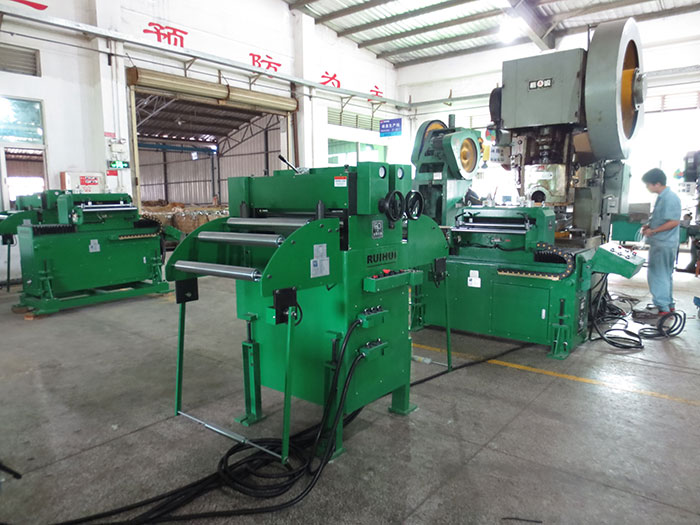

    roller feeder

    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110

    punching machine
    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
    2. After-Sales service:We have an efficient team to meet 24*7 all day service.
    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
    4. Engineers can provide service machinery overseas.
