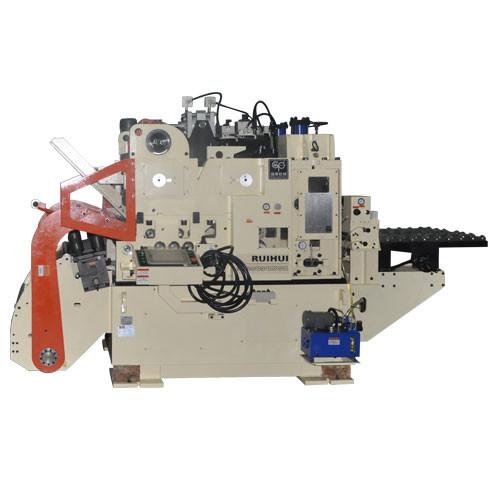

    Stamping Steel Plate Straightening Machine Rotary Wire Leveler Decoiler Feeder Machine

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : TUV
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    Model Number : MAC4-400
    • Product Details
    • Company Profile

    Stamping Steel Plate Straightening Machine Rotary Wire Leveler Decoiler Feeder Machine

    Stamping Steel Plate Straightening Machine Rotary Wire Leveler Decoiler Feeder Machine

    NC servo feeder integrates mechanical, pneumatic, electrical, automation, intelligent control and other technologies. It has many advantages that traditional air feeders and roller feeders can't match. It is the preferred feeding equipment for stamping automatic production line and automatic cutting production line.

    Ruihui NC feeder adopts a new servo motor drive structure to replace the traditional complex mechanical transmission structure, which effectively ensures the feeding accuracy. The use of PLC numerical control system and touch screen makes the feeding step setting easy and convenient.

    The servo motor directly drives the feeding roller through the timing belt to ensure the feeding speed. At the same time, the use of the roller eccentric bearing realizes the self-locking of the feeding gap interval, which fundamentally avoids the misfeeding of the feeding and effectively eliminates the accumulation. The error can efficiently complete various precise feeding operations.

    When the Ruihui NC feeder is actually used, use the mounting plate to fix the feeder head to the side table of the punching machine. After adjusting the feeding height, connect the air source.

    Then connect the relaxing cam signal line and the feeding cam signal line connected to the punching machine. In actual use, the cam signal line transmits the loosening and feeding signals to the NC feeder PLC to efficiently and automatically complete the feeding and relaxing actions.

    NC feeder

    Stamping Steel Plate Straightening Machine Rotary Wire Leveler Decoiler Feeder MachineStamping Steel Plate Straightening Machine Rotary Wire Leveler Decoiler Feeder MachineStamping Steel Plate Straightening Machine Rotary Wire Leveler Decoiler Feeder MachineStamping Steel Plate Straightening Machine Rotary Wire Leveler Decoiler Feeder Machine

    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
    2. After-Sales service:We have an efficient team to meet 24*7 all day service.
    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
    4. Engineers can provide service machinery overseas.
