    High Precision 3 in 1 Feeding Steel Coil Uncoiler Flatting Feeder Machine

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    Model Number : MAC4-400
    • Product Details
    • Company Profile

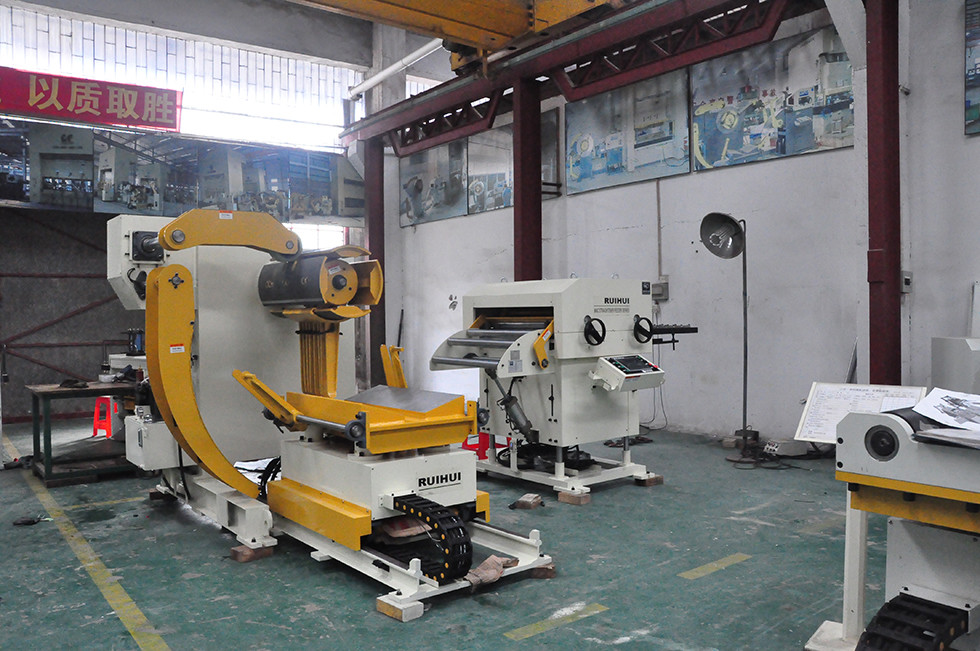

    High Precision 3 in 1 Feeding Steel Coil Uncoiler Flatting Feeder Machine

    High Precision 3 in 1 Feeding Steel Coil Uncoiler Flatting Feeder Machine

    Features of Servo Feeder: The feeder is suitable for feeding materials with different thickness and length; the feeder is suitable for high speed and long feeding, improving productivity and feeding accuracy.

    Machine characteristics of the servo feeder:
    High-precision feeding: For the advent of the high-tech industry, the closed-circuit feedback control of the computer ensures the accuracy is within ±0.02mm.

    Feeder stage type: It can input 20 sets of different feed lengths, each set provides 999 times of punching times, which can meet the processing and production of special products (optional).

    User-friendly manual mode: Enter the appropriate 3-stage manual speed to make it easier for the user to operate and accurately position the material into the mold.

    Efficient relaxation device: Quickly set the angle of relaxation with the cam signal of the punch and the simple material thickness adjustment.

    Feed length setting: On the control panel, directly input the feed length to achieve the required feed distance.

    Feeding mechanism: The roller adopts hollow type, light weight, small rotary inertia, surface hardness HRC60° hard chrome plating, wear resistance and long service life.

    The feeder has a button digital code for feeding length and feeding speed, which can be set by the operator arbitrarily and quickly. The feed length can be from 0.1mm to 9999.99mm.

    The feeder adopts a mechanical relaxation method (accurate point is accurate), which can be used for a long time and has zero failure.

    Feeder scope: widely used in hardware, stamping, electronics, electrical, technology, auto parts, metal, packaging, industry, precision, aviation, cabinets, machinery, electrical, mechanical and electrical industries.


    High Precision 3 in 1 Feeding Steel Coil Uncoiler Flatting Feeder Machine

    High Precision 3 in 1 Feeding Steel Coil Uncoiler Flatting Feeder MachineHigh Precision 3 in 1 Feeding Steel Coil Uncoiler Flatting Feeder Machine

    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
    2. After-Sales service:We have an efficient team to meet 24*7 all day service.
    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
    4. Engineers can provide service machinery overseas.
