    Mitsubishi Servo Motor Safety PLC Sheet Metal Straightener Machine For Air Conditioning Parts

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    Model Number : MAC3-1000
    • Product Details
    • Company Profile

    Mitsubishi Servo Motor Safety PLC Sheet Metal Straightener Machine For Air Conditioning Parts

    Mitsubishi Servo Motor Safety PLC Sheet Metal Straightener Machine For Air Conditioning Parts

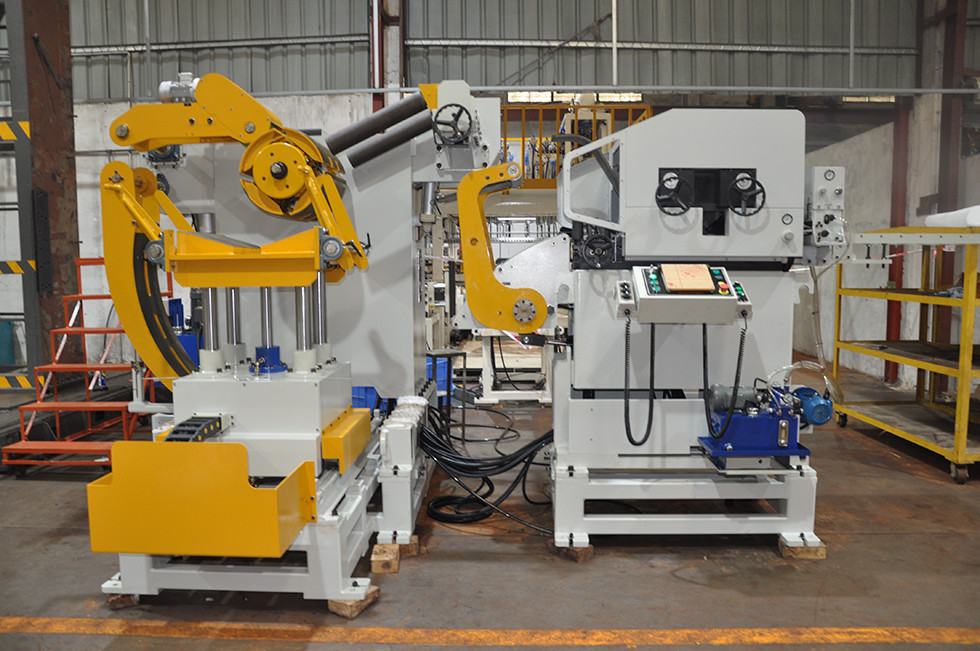

    As a new type of feeding equipment, NC feeder adopts servo motor + PLC + touch screen to form a high-precision control system, which greatly improves the stamping feeding accuracy (usually up to ±0.02mm), simplifying the adjustment and use process (touch screen simple input) It can greatly expand the scope of use, improve production efficiency and safety factor throughout the production process, and is the most ideal choice for efficient production.

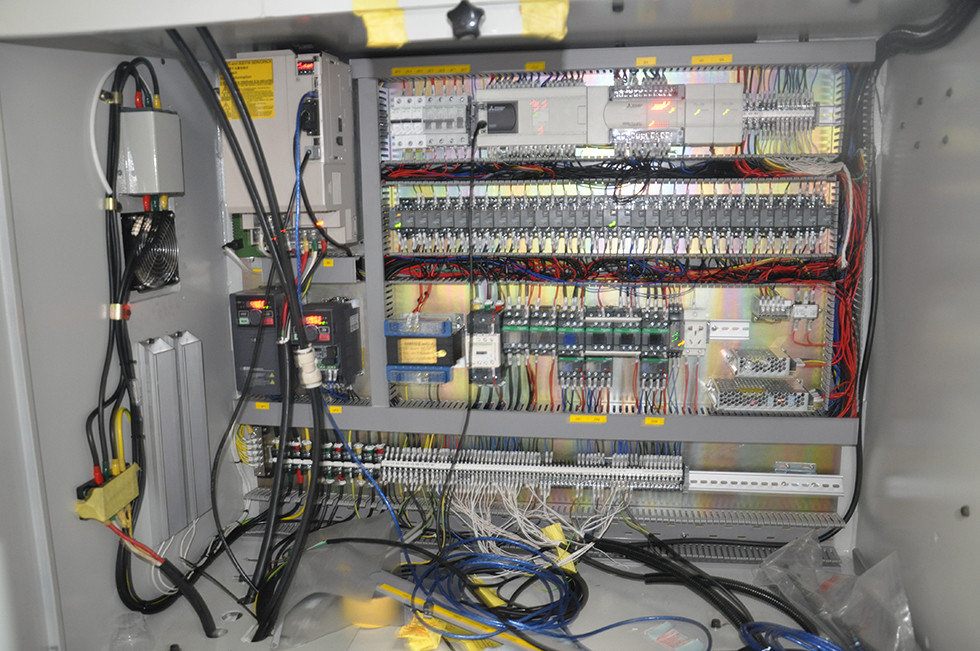

    The NC feeder consists of two parts: the feeding main body and the electric control box. The feeding main body is fixed on the side table of the punching machine by the mounting plate, and the feeding screw height is adjusted by the adjusting screw to match the characteristics of the mold production process, wherein the feeding body is equipped with the feeding end. There is a support rack, and two hoisting type retaining wheels are symmetrically arranged thereon to limit the material.


    When the Ruihui NC feeder is actually used, the metal sheet to be processed is placed on the pallet, the electric control box is adjusted, the electric control box controls the rotation of the feeding drum, and the feeding roller drives the metal sheet to feed, during the feeding process, The metal sheet is lifted by the support roller on the pallet to reduce the friction.


    The two symmetrical stopper wheels on the left and right can limit the material and avoid misalignment, thus ensuring punching, bending, cutting and the like on the metal sheet, and completing the entire workpiece with high efficiency and high precision. Processing.

    Mitsubishi Servo Motor Safety PLC Sheet Metal Straightener Machine For Air Conditioning PartsMitsubishi Servo Motor Safety PLC Sheet Metal Straightener Machine For Air Conditioning PartsMitsubishi Servo Motor Safety PLC Sheet Metal Straightener Machine For Air Conditioning PartsMitsubishi Servo Motor Safety PLC Sheet Metal Straightener Machine For Air Conditioning PartsMitsubishi Servo Motor Safety PLC Sheet Metal Straightener Machine For Air Conditioning Parts

    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
    2. After-Sales service:We have an efficient team to meet 24*7 all day service.
    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
    4. Engineers can provide service machinery overseas.
