Brand Name : | RUIHUI |
Certification : | CE, ISO certification |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 30 Sets Per Month |
Delivery Time : | 30 work days |
Model Number : | MAC3-1000 |

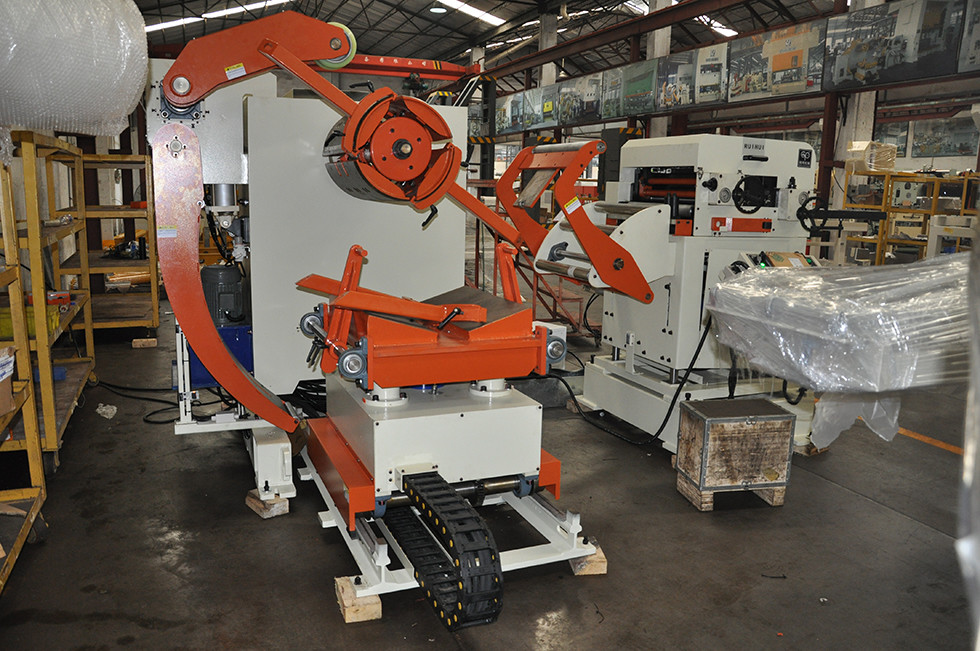

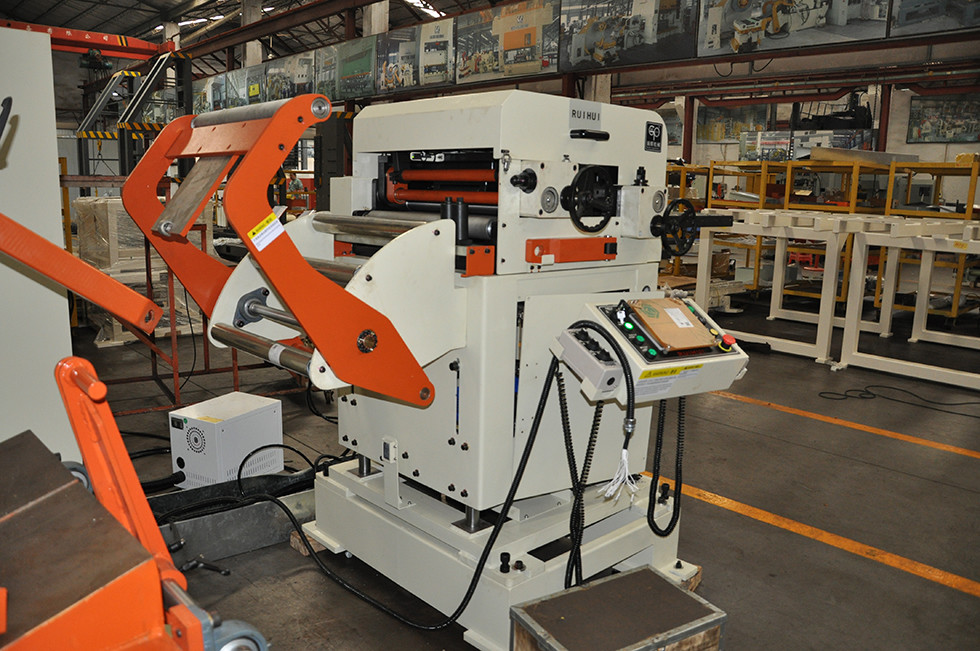

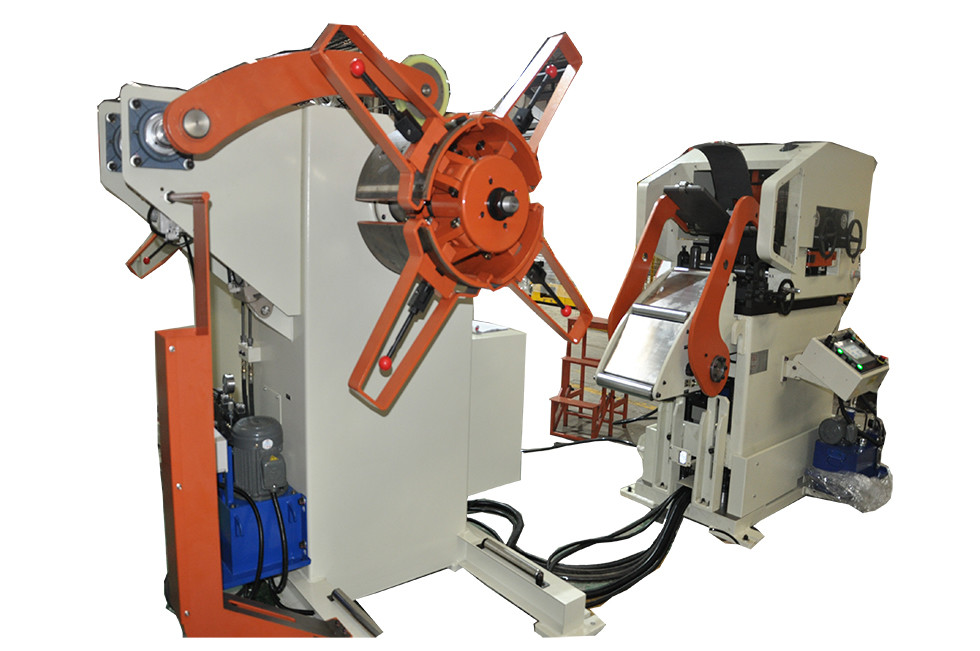

Fully Automatic Metal Sheet Feeding Roller Decoiler and Straightener Feeder Machine
In the case of multi-station stamping feeding, if the strip is not
cut after being stamped, the material itself is too elastic, the
discharge load is too large, or the strip is too thin.
The material may be irregularly stretched or unsuccessful,
resulting in poor processing of the punching processing portion and
excessive number of defective stampings.
In this type of processing, the press machine can be equipped with
two Ruihui NC servo feeders for one-to-one pull-type feeding mode, which can realize fast and
accurate feeding, ensuring stable and high precision stamping
processing.
Two Ruihui NC servo feeders feed the plates through two
pull-and-send (installation can be one left and one right, or one
after the other) two servo system-driven feed rollers, sharing a
single (feed or Pull the pressure on the roller.
At the same time, in order to ensure the complete consistency of
the servo feeding, the two Ruihui NC feeders are automatically
lifted by the cylinder to eliminate the cumulative error and
internal stress, effectively reducing the deformation of the
material to the processing site. The impact of the formation.
When Ruihui sends and pulls the NC servo feeder, it uses the servo
motor of the servo feeder for feeding to drive the front roller forward.
At the same time, the servo feed of the servo feeder is driven, and
the forward movement of the servo feed roller is exactly the same
as that of the servo motor of the servo feeder for feeding.
When the plate reaches the front roller, it is fed by the front and
rear rollers. When the plate is fed to the required length, the
cylinder is lifted for a certain period of time and then put down,
repeating the above actions to achieve precise feeding and relaxing
action.
It fundamentally solves the problem that the material is
irregularly stretched or unsuccessful, ensuring the stability of
the stamping process and the stability of the processing quality of
the product.
Specification:
Model | MAC2-400 | MAC2-500 | MAC2-600 | MAC2-800 | ||
Stock Width(mm) | 50-400 | 50-500 | 50-600 | 50-800 | ||
Stock Thickness(mm) | 0.3~3.2 | 0.3-3.2 | 0.3-3.2 | -3.2 | ||
Max.Coil Weight(kg) | 3000 | 3000 | 3000 | 5000 | 5000 | 7000 |
Max.Coil O.D.(mm) | 1200 | 1200 | 1200 | |||
Coil I.D.(mm) | 8 | 8 | 508 | 508 | ||
Feed Length(mm) | ~500* | ~500* | ~500* | ~500* | ||
Max. Line Speed(m/min) | 16-24 | 16-24 | 16-24 | 16-24 | ||
Work Roll Number(pieces) | upper 6 lower 5 | upper 6 lower 5 | upper 6 lower 5 | upper 6 lower 5 | ||
Feed Roll Number(set) | 1 | 1 | 1 | 1 | ||
Main Motor(kw) | AC2.9 | AC2.9 | AC4.4 | AC4.4 | ||
Mandrel Expansion | hydraulic | hydraulic | hydraulic | hydraulic | ||
Reel Motor(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 |
Power(V) | 3 Phase 220V/380V/50HZ | |||||
Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 |
Straigtening performance:
tock Thicknees (mm) | Stock Width (mm) | |||
0.3 | 400 | 500 | 600 | 800 |
0.4 | ||||
0.6 | ||||
0.8 | ||||
1.0 | ||||
1.2 | ||||
1.4 | ||||
1.6 | 470 | 470 | ||
1.8 | 400 | 400 | ||
2.0 | 360 | 360 | ||
2.3 | 300 | 300 | 300 | 300 |
2.5 | 230 | 230 | 230 | 230 |
2.8 | 150 | 150 | 150 | 150 |
3.2 | 110 | 110 | 110 | 110 |
*1:(Pneumatic):Option in case of pneumatic mandrel expansion is
provi
![]() |
