Feeders commonly used in the market, whether air feeders, roller feeders, NC feeders, gear feeders or high-speed clip feeders, are continuous feeders designed for sheet metal.

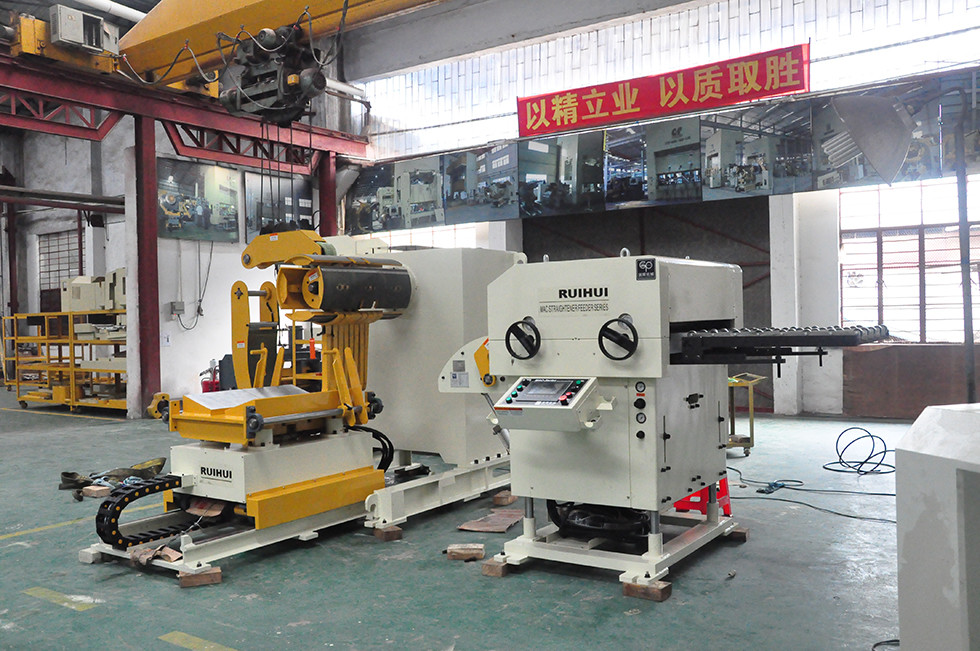

That is usually used on coils, the entire stamping automated production line consists of unwinding device (material rack), leveling device (leveling machine), feeding device (feeder), punching machine and continuous die, receiving device (receiver) .

These devices are in turn arranged along the material feed direction to form a complete automated stamping line.

In actual use, the coil material is placed on the material rack, and after it is unwound, it enters the leveling machine, and is leveled and destressed by the leveling machine and then enters the feeder.

In the stepping punching die through the feeder, the material is punched and processed by the punching machine, and finally the scraped waste is taken up and recovered by the receiving machine.

The sheet feeding machine is composed of four main functional components: a feeding mechanism, a feeding mechanism, a pushing mechanism and an electric control mechanism, and the actions of the feeding mechanism, the feeding mechanism and the pushing mechanism are all controlled by the electronic control component.

By simply setting the feed-related parameters on the touch panel of the independent control box, the sheet can be accurately and automatically fed into the punching position to achieve continuous high-precision stamping production.

It not only saves stamping processing time, improves production efficiency, but also fundamentally ensures the safety of stamping processing.

When the sheet feeder is actually used, the motor output shaft of the feeder feeding mechanism is connected to the screw drive through the pulley.

The rotation of the screw rod can drive the loading shaft to move up and down. When the feeding material moves in the axial direction, the sheet disposed in the loading trough is sent to the upper end of the loading trough.

The proximity sensor senses the sheet, the suction cylinder of the feeding mechanism drives the vacuum suction head to move downward, and the proximity switch disposed on one side of the feeding guide shaft seat gives an inhalation signal.

The suction head sucks up the to-be-added part in the loading trough, and when the vacuum suction head sucks the vacuum to be added, the suction cylinder drives the upward movement. At this time, the suction assembly is driven by the first servo motor. Move forward.

The servo motor drives the pusher assembly forward, and the pusher head of the pusher assembly pushes the sheet to the punch on the front of the pusher guide axle seat.

After the completion of the action, the proximity switch disposed on the side of the pusher guide shaft seat sends a signal to return, the pusher assembly is reset, and the above work flow is continuously repeated to complete the automated stamping process.

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.
