    CE ISO9001 Stamping Automatic Straightening Machine Leveler For Metal Forming

    Ask Lasest Price
    Brand Name : RUIHUI
    Supply Ability : 25 Piece/Pieces per Month
    Price : $2,500.00/pieces 1-1 pieces
    • Product Details
    • Company Profile

    CE ISO9001 Stamping Automatic Straightening Machine Leveler For Metal Forming

    CE ISO9001 Stamping Automatic Straightening Machine Leveler For Metal Forming

    Welcome OEM & ODM

    Mini size 0.45T sheet flattening machine flattener RLF - 200model straightener

    CE ISO9001 Stamping Automatic Straightening Machine Leveler For Metal Forming

    1.Application

    The RLF series offers a precision straightener that can process material width up to 300mm, and can be adjusted to handle stock thicknesses between 0.1 and 1.4mm. This is the optimum model for processing all kinds of precision components which require outstanding straightening performance.

    2.Specification


    Specification
    ModelRLF-200RLF-300
    Max.Material Width(mm)20-20020-300
    Material Thickness(mm)0.1~1.4
    Speed(m/min)5~30
    Motor(KW)1.5
    Work Rolls NumberUpper 11/Lower 11 All Drive Function
    Work Roller Diameter12
    Back Up Rolls14Hi
    Adjustment4 Point Fine Micor Adjustment
    Loop ControlTouch Sensor
    Work Roll OpeningManual Operation
    Drive MethodUniversal joint actuation

    Straightening performance
    ModelRLF-200RLF-300
    Stock Thickness(mm)0.1~0.4200300
    0.5200262
    0.6200210
    0.8145146
    1109108
    1.28584
    1.47068

    Contact Us

    CE ISO9001 Stamping Automatic Straightening Machine Leveler For Metal Forming

    Company Information

    RUIHUI founded in 2000, the technology of automation periphery is from Japan.Now RUIHUI is a Japanese brand and the same technique of sheet metal stamping surrounding automation equipment manufacturer. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided RUIHUI highly responsible for industry and RUIHUI strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach higher level in same industy,and investment less.

    CE ISO9001 Stamping Automatic Straightening Machine Leveler For Metal Forming


    Certificate

    CE ISO9001 Stamping Automatic Straightening Machine Leveler For Metal Forming

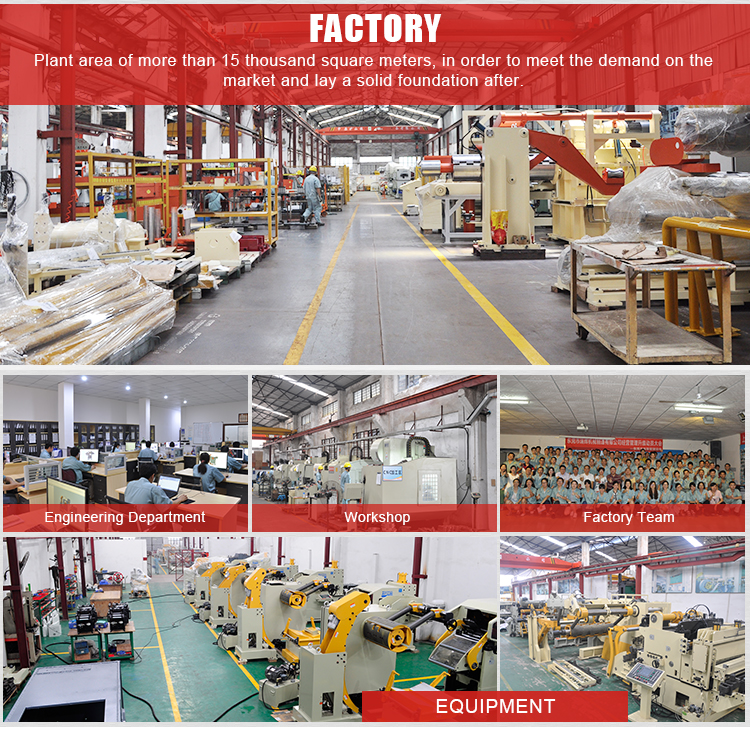

    Factory

    CE ISO9001 Stamping Automatic Straightening Machine Leveler For Metal Forming

    Cooperation Brand

    CE ISO9001 Stamping Automatic Straightening Machine Leveler For Metal Forming
