    Sheet Flattening Machine NC Servo Feeder for Metal Straightener

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE/ISO Certificated
    Supply Ability : 25 Piece/Pieces per Month
    Price : $50,000.00/pieces 1-4 pieces
    • Product Details
    • Company Profile

    Sheet Flattening Machine NC Servo Feeder for Metal Straightener

    Sheet Flattening Machine NC Servo Feeder for Metal Straightener

    Welcome OEM & ODM

    Labor - saving 3 in 1 NC servo uncoiling straightening feeding machine

    Product Information

    Sheet Flattening Machine NC Servo Feeder for Metal Straightener

    1.Features

    1). Uses 7 leveling roller, effectively improve the leveling precision materials.
    2). The mechanical structure of innovation, so that the whole machine working space contracted to the minimum required.
    3). Operation panel with color LCD display, touch screen size, high clear operation picture, coordination operational safety protection system, even if is the primary user can also operate relieved.
    4). The system user-friendly design operating sound, preparatory work reduction. Advanced automatic diagnosis system, assists the operator to control this aircraft's remarkable performance quickly.
    5). Using Japanese servo motor, to ensure the high precision feeding.
    6). Feeding roller and leveling roller through a special heat treatment, high hardness, wear-resistant, long life.
    7). The design concept of safety factor is enhanced, makes the equipment safety using time.
    8). Machine color (Customized): subject-- Milk white Y11;Warning-- Orange red(RAL2001)

    2.Specification


    Specification
    ModelMAC4-400MAC4-600MAC4-800MAC4-1000MAC4-1300MAC4-1600
    Stock Width(mm)70~40070~60070~80070~100070~130070-1600
    Stock Thickness(mm)0.6~6.0
    Max.Coil Weight(kg)5000500070007000700010000
    Max.Coil O.D.(mm)1400
    Coil I.D.(mm)508
    Feed Length(mm)~500*
    Max.Line Speed(m/min)16~24
    Work Roll Number(piece)upper 4/down 3
    Feed Roll number(set)1
    Main MotorAC5.5AC7.5AC7.5AC7.5AC11.0AC15.0
    Mandrel ExpansionHydrauilc
    Reel Motor(kw)2.22.23.73.73.77.5
    Power(v)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.49

    Straightening Performance
    ModelMAC4-400MAC4-600MAC4-800MAC4-1000MAC4-1300MAC4-1600

    Stock

    Thickness

    (mm)

    0.6~1.3400600800100013001600
    2.0
    2.31360
    2.511701170
    2.8933933933
    3.2714714714714
    4.0457457457457457
    4.5361361361361361361
    5.0293293293293293293
    6.0203203203203203203

    Remark:

    1.The above flgures are the material having yield strength of 392N/mm2 max.

    2.Specification are subject to change for improvement without notice.

    Sheet Flattening Machine NC Servo Feeder for Metal StraightenerSheet Flattening Machine NC Servo Feeder for Metal StraightenerSheet Flattening Machine NC Servo Feeder for Metal StraightenerSheet Flattening Machine NC Servo Feeder for Metal Straightener

    Contact Us

    Sheet Flattening Machine NC Servo Feeder for Metal Straightener

    Hot Products
    Sheet Flattening Machine NC Servo Feeder for Metal Straightener
    Certificate

    Sheet Flattening Machine NC Servo Feeder for Metal Straightener

    Company Information

    Sheet Flattening Machine NC Servo Feeder for Metal Straightener

    RUIHUI founded in 2000, the technology of automation periphery is from Japan.Now RUIHUI is a Japanese brand and the same technique of sheet metal stamping surrounding automation equipment manufacturer. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided RUIHUI highly responsible for industry and RUIHUI strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach higher level in same industy,and investment less.

    Sheet Flattening Machine NC Servo Feeder for Metal Straightener

    1.Pre-Sales Service: We have professional designers to meet the different requirement of our customers.


    2.After-Sales service: We have an efficient team to meet 24*7 all day service.


    3.Full-Service: Actively cooperate with customers to deal with problems in equipment using.


    4.Engineers can provide service machinery overseas.


    Sheet Flattening Machine NC Servo Feeder for Metal Straightener

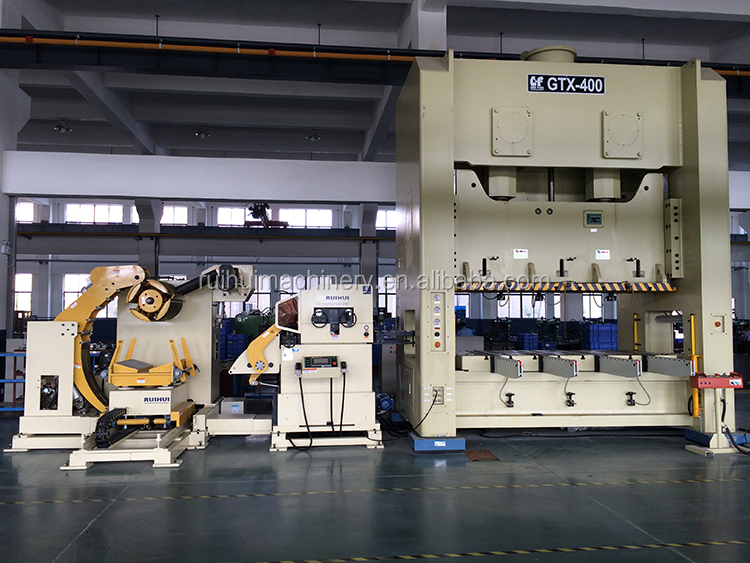

    Process & Factory

    Sheet Flattening Machine NC Servo Feeder for Metal Straightener

    FAQ

    Sheet Flattening Machine NC Servo Feeder for Metal Straightener

    Q1: What kinds of machines do you have?
    A: Our main products are:Nc Servo Roll Feeder,Uncoiler,Straightener,3 in 1Straightener Feeder,Transfer systems,Press Feeding Line, etc.


    Q2: Is your equipment standard or customized?
    A: Both, we can OEM & ODM with customers.


    Q3: What are your equipments certification?
    A: All our items are coming with CE certifications.


    Q4: How did your company's quality system work?
    A: "QUALITY IS OUR CULTURE"Our quality is not the best in the world, and the price is not the cheapest.But we can provide you excellent products to defeat your competitors.


    Q5: How long is the warranty period of the machine?
    A: We offer free service with a warranty period of one year, If it is operate in reasonable, the machine can be used more than 10 years.


    Q6: Is it possible to be a foreign agent and distributor?
    A: If you are confidence and excellent service for after-sales, then welcome to be our agents or distributors all over the world.


    Q7: What’s your payment?
    A: T/T,D/P,L/C,Western Union,etc.


    Q8: What’s the delivery?
    A: “TIME IS GOLD” for you and for us, so we have professional team work and production line can make nice quality in short time.
