The automatic production of stamping is indispensable for the unwinding of the material roll, the flattening of the sheet after unwinding, the internal stress, and the stepping of the flat sheet to the punching machine. The equipment used in these three processes is called It is a material rack, a leveler and a feeder.

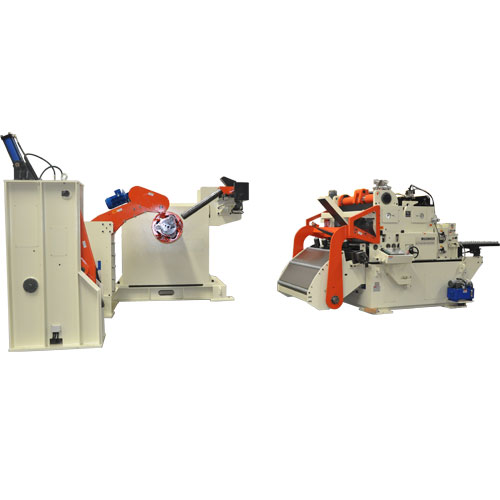

The machine that combines the three functions of the material leveling and feeding is called a three-machine integrated material leveling feeder, and is also referred to as a three-in-one feeder.

Two-in-one is a combination of two kinds of equipment. The most common one is a two-in-one rack and leveling machine that combines the material rack and the leveling machine. It is also referred to as two-in-one flattening. machine.

In fact, the leveling machine and the feeder can also be combined to achieve the leveling feeding function. This type of machine is called a two-in-one leveling feeder.

Ruihui two-in-one flat feeding machine is a machine that optimizes the combination of precision leveling machine and NC servo feeder. It has the same function as the flattening feeding head of the three-in-one feeder, that is, leveling the material. With feeding.

The leveling feeder head of the three-in-one feeder is actually a complex two-in-one leveling feeder, and the two-in-one leveling feeder that is actually used alone is a simple model, both of which are There are no small differences in function:

1. The difference in leveling feed accuracy. The flattening of the simple two-in-one flattening feeder is unpowered and is only transported by the subsequent feeder.

The leveling and feeding transmission of the three-in-one feeder is selected by the imported servo motor precision transmission, so there is a big difference in the accuracy of the two.

2. The difference in the feeding of the machine. The simple two-in-one flat feeding machine has no oil pressure material head folding device, and the feeding of the material head requires manual manual feeding, and the three-in-one feeding machine can realize automatic loading.

3. The difference between the leveling and feeding head lifting adjustment. The height adjustment of the body of the simple two-in-one flat feeding machine is realized by manually adjusting the height of the machine stand, while the height adjustment of the three-in-one feeder is adjusted by electric lifting, which can be directly operated on the touch screen. achieve.

4. The difference in the relaxation function of the leveling part. The simple two-in-one flattening feeder flattening roller set does not have a relaxation function, and the pneumatic relaxation device used in the flattening part of the three-in-one feeder can lift the roller on the whole to relax.

5. The difference in practical application. The simple two-in-one flattening feeder is mainly used for the flattening feeding of sheet metal 0.3-2.0mm sheet material. If the material is too thick, the slipping feed will be inaccurate.

The Ruihui three-in-one feeder has many models, and can be used for automatic leveling of various plates such as thin plates, medium plates and thick plates.

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
