    Electric Hydraulic Hole Puncher Coil Feeder Straightener For Metal Sheets With 12 Months Warranty

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Electric Hydraulic Hole Puncher Coil Feeder Straightener For Metal Sheets With 12 Months Warranty

    Auto parts stamping processing, 3-in-1 feeder, stamping automatic feeding
    www.ruihui.net
    The 3-in-1 feeder uses a computerized NC control system for a more user-friendly design. It is suitable for feeding and correcting various metal sheets.

    Designed for space saving and easy operation; suitable for continuous stamping processing of various hardware, electronics, electrical appliances, toys and auto parts, feeding correction, accurate and durable. The material roll device uses hydraulic expansion to feed the material into the die without manual feeding, saving labor and safety.

    The use of the 3-in-1 feeder not only saves time and labor, but also greatly reduces labor intensity, and reduces labor costs and saves human resources. The operation of each auxiliary device is powered by oil pressure, air pressure or electricity. The reeling machine adopts cantilever type pressing material, motor transmission control, positive and negative rotation, and hydraulic cylinder holding iron ring, which is easy to operate, easy to maintain and low failure rate.

    Instructions for handling 3 in 1 feeder:

    1. Safety shoes should be worn to prevent people from being injured while carrying the feeder. Also, in order to avoid damage to the machine and parts in the collision of the wooden box, please use the crane or overweight machine to move from the bottom to move the machine.

    2. When the car is in mobile use, you must first hook the chain or cable to the upper end of the machine, or use a crane to move the machine.

    3. When the 3-in-1 feeder arrives, please check the quality and specifications of the machine. If there is any damage or other problems during transportation, please contact the company directly.

    4. The crane or crane must be able to load the mechanical weight of the specification at least.

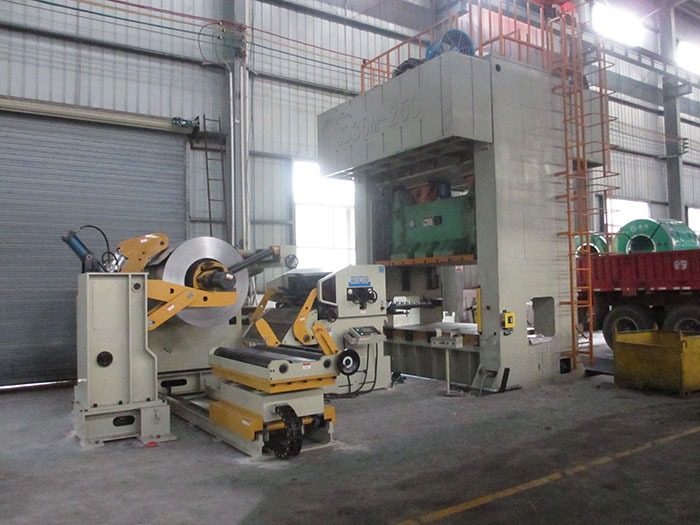

    3-in-1 feeder
    3-in-1 feeder

    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
    2. After-Sales service:We have an efficient team to meet 24*7 all day service.
    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
    4. Engineers can provide service machinery overseas.
