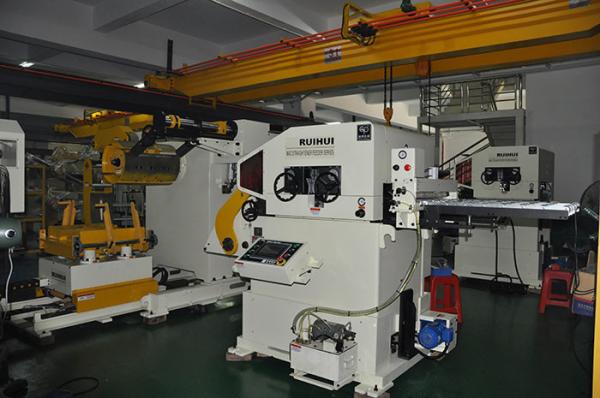

    NC Feeder Frame Strip Straightener Machine Stamping Chilled Steel Plate Thickness 3mm


    NC feeder frame, Jiangsu stamping chilled steel plate thickness 3mm, Ruihui robot


    The feeder is fixed and installed, and has a simple structure, is convenient and practical, and thus has been widely used. Compared with the air feeder and the roller feeder, the NC feeder has a wider application range and can be used for various plates with a material width of 0-2000 mm and a material thickness of 0-6.0 mm.

    The fixed frame of the NC feeder consists of a main frame, a support table, a support plate, a support column, a flange, a shock absorbing ring, etc., wherein the upper part of the main frame is a pair of support platforms distributed in a space, 2 The support table is a support plate fixed to the support table.


    The NC feeder body is arranged on the upper part of the support plate, and the outer wall of the support table is provided with a uniformly distributed support column. The outer end of the support column is provided with a support column flange, and the support column flange is positioned by the support column connection plate, and the support column A damping ring is arranged between the support platform and the support body and the support column are matched and fixed, and the body of the feeder is matched with the shock absorbing ring.


    The left end and the right end of the main frame are respectively provided with reference fixing holes, and the reference fixing holes are located at the outer end of the support table, and the support plate is provided with a body fixing bolt fixed to the body of the feeder.


    Ruihui's NC feeder with fixed rack has stable performance and high reliability, which fundamentally eliminates the vibration and instability during the operation of the fuselage, and fundamentally ensures the high precision and super high speed of the feeder. Stability also greatly enhances the scope of application of the NC feeder.

    NC feeder

    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
    2. After-Sales service:We have an efficient team to meet 24*7 all day service.
    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
    4. Engineers can provide service machinery overseas.
