    Leveling Sheet Metal Decoiler Machine Stamping Processing CNC Coil Handling Equipment

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Leveling Sheet Metal Decoiler Machine Stamping Processing CNC Coil Handling Equipment

    Mechanical equipment, stamping processing, Guangdong Ruihui CNC feeding machine
    www.ruihui.net

    The CNC feeder is short for digital control and is an automation with a program control system. The control system can logically process and decode the program with control code or other symbolic instructions to operate the CNC bending machine and machine the part.

    CNC feeders are used in a wide range of applications. Nowadays, in the electronic age, many companies have chosen more efficient machinery to increase productivity.

    The function of the servo system is to convert the construction number of the pulse letter CNC feeder from the numerical control device into the motion of the moving part. Specifically, the following components are constructed: the construction of the numerical control feeder.

    1. Auxiliary device: Some necessary supporting components of the index-controlled feeder to ensure the operation of the CNC feeder, such as cooling, chip removal, lubrication, lighting, monitoring, etc. It includes hydraulic and pneumatic devices, chip removal devices, exchange tables, CNC turntables and CNC indexing heads, as well as tools and monitoring and inspection devices.

    2. the drive device: he is the drive component of the CNC feeder actuator, including the spindle drive unit, feed unit, spindle motor and feed motor. He drives the spindle and feed through an electrical or electro-hydraulic servo system under the control of a numerical control unit. When several feeds are linked, the positioning, straight line, plane curve and space curve can be processed.

    3. the host: he is the main body of the CNC feeder, including body parts, columns, spindles, feed mechanisms and other mechanical components. He is a mechanical component for performing various cutting operations.

    Programming and other ancillary equipment: can be used to program, store, etc. parts outside the machine.

    4. Numerical control device: It is the core of the CNC feeder. It includes hardware and corresponding software for inputting digital part programs, and completes input information storage, data conversion, interpolation calculation and various control functions.

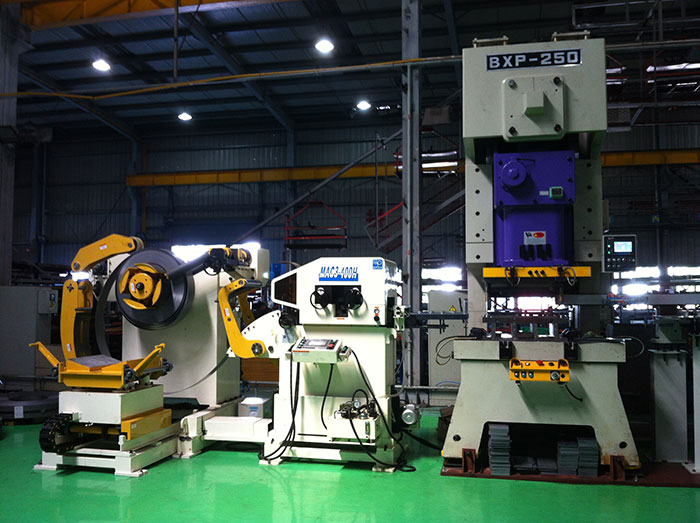

    CNC feeder

    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
    2. After-Sales service:We have an efficient team to meet 24*7 all day service.
    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
    4. Engineers can provide service machinery overseas.
