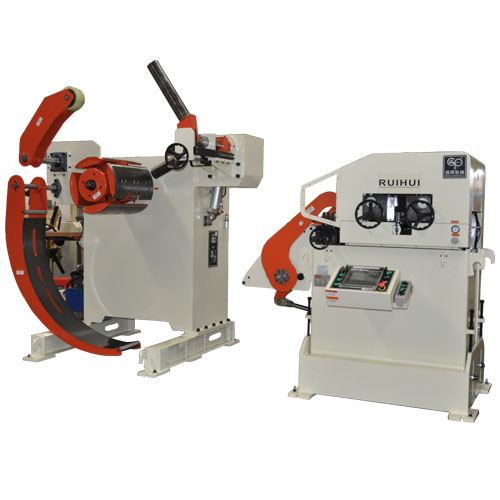

Unwinding equipment, Guangzhou pre-embedded stamping feeder, Ruihui automatic feeder

Due to its advantages of simple operation, good stability, large bearing capacity, high degree of customization and long service life, the heavy-duty material frame has become the most used material for unloading and unwinding in stamping processing.

The heavy-duty material frame is famous for its high stability and service life. The main frame is made of steel, A3 steel plate and #45 steel forged bearing seat. The wall plate, hole position and main parts are all welded. It is machined by CNC machining center. The materials of bearings, gears and spare parts are all made of the highest standards in the industry.

Heavy material rack maintenance:
1. Before starting the machine, check the grounding condition of Ruihui heavy-duty material frame to ensure good grounding and avoid damage to the electrical equipment and personnel damage caused by improper grounding.

2. Before starting the machine, check the support tile of the material frame up and down roll to check the wear of the surface; at the same time, check the tightening of the bolts and the sliding shaft of the expansion and contraction drum and whether the bearing seat is damaged. It is fastened or replaced.

3. Open the electric control box and check the fastening condition of each contact in the electric control box to ensure that the contact parts are not loose, so as to avoid damage to the electrical equipment or sudden failure during use.

4. After long-term use, add grease to the material frame spindle bearing once every month (or working time reaches 260 hours). Open the rear frame of the material frame every six months (or working time up to 1500 hours). To replace the oil for the reducer, the oil change amount can be added to the 1/2 between the axle and the rod.

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.

Why choose us?

1^st,We have a high level of technical research and development team;

2^nd,We can provide the design and planning of the whole plant to realize the turnkey project;

3^rd, our philosophy: quality is the social responsibility;

4^th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;

5^th,We have a highly effective after-sales service team and get customer approval.
