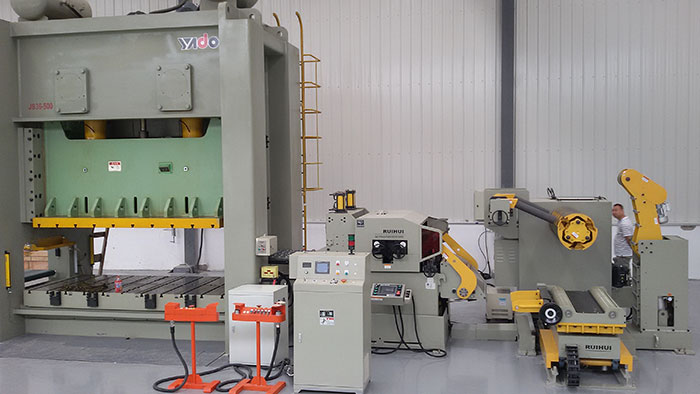

Leveling feeder, car parts manufacturing line, Ruihui material frame

When using the three-in-one leveling feeder head, first adjust the distance between the two sliding seats by pivoting the screw of the feed width adjusting component to adjust the width of the limiting channel to the coil to be leveled. The widths are matched and the upper linear feed roller is moved in a direction away from the lower feed roller by the second linear drive of the leveling feeder feed mechanism, and then.

Feeding the strip unwound from the three-in-one feeder material frame along the feed guide channel and sequentially passing through the limit passage and the feed port to finally enter the leveling zone of the leveling device, and then through the second linear drive Driving the upper feed roller to move toward the lower feed roller, the rotary drive drives the mutual rotation of the upper feed roller and the lower feed roller to feed the strip into the leveling zone, and the lowering device The flattening wheel set is also driven to rotate by the rotary drive, and the lower flat wheel set and the upper flat wheel set cooperate with each other to level the processing.

In addition, the second adjusting hand wheel of the second eccentric shaft adjusting mechanism unique to the leveling feeding head of the Ruihui three-in-one feeder can be further adjusted, that is, the third eccentric shaft is driven by pivoting the second adjusting hand wheel. The rotation is further adjusted to adjust the pivot position of the first mount, thereby adjusting the spacing between the upper flat wheel set and the lower flat wheel set. The first eccentric shaft adjustment mechanism and the second eccentric shaft adjustment mechanism unique to the Ruihui three-in-one feeder can be adjusted in such a way that the leveling accuracy of the leveling device can be accurately and accurately adjusted.

Finally, the upper discharge roller and the lower discharge roller of the Ruihui leveling feeder discharge mechanism are also driven by the rotary drive to send the processed flattened coil to complete the winding leveling and feeding. Process, this is the whole process of the work of the flat-feeding machine head of Ruihui three-in-one feeder.

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.

Why choose us?

1^st,We have a high level of technical research and development team;

2^nd,We can provide the design and planning of the whole plant to realize the turnkey project;

3^rd, our philosophy: quality is the social responsibility;

4^th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;

5^th,We have a highly effective after-sales service team and get customer approval.
