    Gear Feeder Equipment Steel Plate Straightening Machine Metal Deep Drawing Punch Automation

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Gear Feeder Equipment Steel Plate Straightening Machine Metal Deep Drawing Punch Automation


    Gear Feeder, Metal Deep Drawing, Guangdong Punch Automation Equipment


    The installation of the gear feeder is divided into five major steps:


    1. According to the requirements of the stamping process, determine the feeding direction and installation position of the gear feeder.


    2. Determine the position of the center line on the side of the punching table of the gear feeder.


    3. Align the center line of the mounting bottom plate of the gear feeder with the center line of the side of the punching table, drill the tapping on the punching machine body, and fix the feeder mounting plate on the punching bed. Pay special attention to the feeder. The centerline of the mounting plate matches the centerline of the punching table.


    4. Fix the fuselage body of the gear feeder on the mounting plate. The fixing screws should not be tightened temporarily, and then adjust the height adjustment screw on the mounting plate according to the height of the center line of the mold.


    Let the discharge center line of the feeder and the mold feed center line ensure the upper and lower and left and right absolute levels, and then lock the fixing screws between the mounting bottom plate and the feeder main body and the lock nut on the height adjusting screw.


    The method of checking the level: start the punching machine, use the inching method to move the punching slider to the dead point, and release the gear feeder to release the cam. The purpose is to relax and not work, feed the material into the feeder, and synchronize with the hand. Pulley.


    Feed the material into the mold to observe whether the material is smooth and without resistance in the mold. If there is resistance, jamming, etc., it indicates that it is not level, and it can be adjusted by adjusting the mold or the feeder.


    5. Connect the gear feeder to the fixed output shaft of the punching machine. Adjust the length of the transmission belt to the appropriate position by adjusting the tension pulley. At this point, the entire installation process of the Ruihui gear feeder is completed.

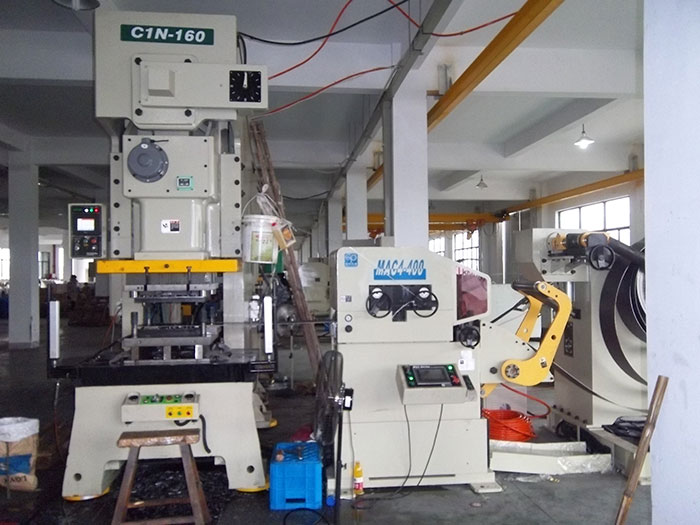

    gear feeder

    gear feeder


    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
    2. After-Sales service:We have an efficient team to meet 24*7 all day service.
    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
    4. Engineers can provide service machinery overseas.
