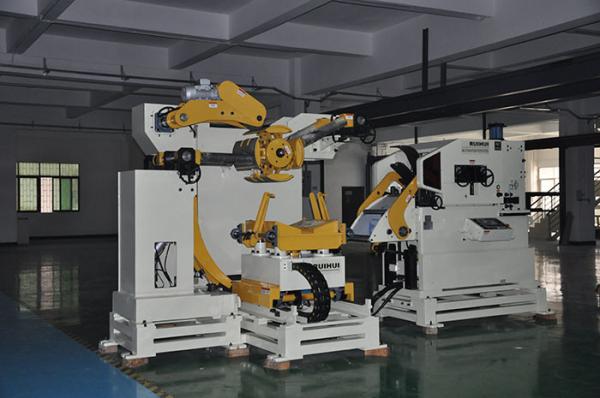

    Automatic Gear Feeder Device Steel Plate Straightening Machine Cold Rolled Sheet Stamping

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Automatic Gear Feeder Device Steel Plate Straightening Machine Cold Rolled Sheet Stamping


    Gear feeder, cold rolled sheet stamping, Dongguan automatic feeder device


    Adjusting the thickness of the material of the gear feeder: put the material into the roller by hand, turn the eccentric wheel to the position of 3 o'clock to adjust the loosening screw, so that the material can completely relax from the roller. Adjust the feeding thickness by the thickness adjustment screw, and pull it with the hand. material.


    The material can be pulled back and forth without any resistance in the feeder. The clockwise rotation of the material thickness adjustment screw increases the apprenticeship, and the counterclockwise apprenticeship is small. If the test is appropriate, the highest point of the relaxation cam can be rotated backwards or forwards. By shaking the material by hand, you can feel the material starts to loosen.


    If the resistance is very large, re-adjust the material thickness adjustment screw until it meets the requirements, but the gap should not be too large, which will cause the relaxation angle to be too large, which will affect the feeding accuracy.


    Gear feeder relaxation angle adjustment:

    1. Turn the eccentric wheel to the 3 o'clock position, that is, the feeding completion angle;


    2. Turn the eccentric to the 4 o'clock position. At this time, the material is not fully pulled before and after.


    3. Turn the eccentric wheel to the 5-6 o'clock position. At this time, the material is completely relaxed. Turn the eccentric wheel to the 7 to 8 o'clock position. At this time, the material is clamped. The feeding time is 9 o'clock and the feeding is started. The angle is exactly the same as the punching angle. Adjustment of the angle of relaxation of the entire feeder.

    feeder

    feeder


    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
    2. After-Sales service:We have an efficient team to meet 24*7 all day service.
    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
    4. Engineers can provide service machinery overseas.
