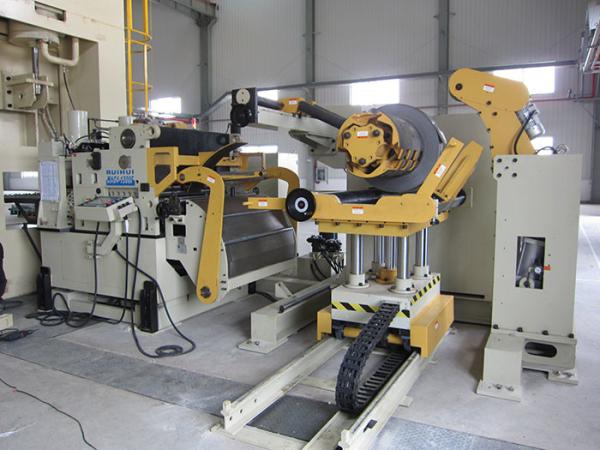

Material frame, sheet metal pneumatic feeder, Dongguan stamping peripheral automation

Heavy-duty material frame This single-axis discharging method ensures uniform torque. The main shaft can only be placed in the center of the base. This will not cause the loosening and tilting of the rotating shaft, but it will cause inconvenience in charging.

Ruihui double-head material rack is a new rack equipment that can solve the cumbersome material loading and time-consuming materials. The double-head material frame has a round-shaped base on the bottom, and the base adopts a thick and thin structure to effectively reduce the center of gravity of the rack, and a rotating seat is pivotally connected above the base, and the rotating seat is symmetrical on one side. The shaft body and the shaft body are composed of a fixed shaft and two expansion and contraction rolls wrapped around the fixed shaft. The design of the two expansion and contraction rolls ensures that the material frame can simultaneously place two coils.

When the double-head material frame is used, two rolls of material can be set on both sides of the expansion and contraction reel. When one roll of material is used, the rotary seat can be rotated through 180° and directly replaced with another roll of material. When another roll of material is used, the new roll is reloaded into the shrink-and-roll reel, so that the entire production line is in the process of stamping, without waiting for the loading process of the roll, which fundamentally improves the production efficiency.

On the other hand, since the two rolls are loaded on both sides of the same fixed shaft, the torque on the base and the rotating base is very small, the overall structural stability is high, and the service life of the material frame is fundamentally ensured.

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.
