Air feeder, metal steel stamping, Dongguan automatic stamping processing

At present, most of the punching and forming processes for rubber magnetic sheets are single-punching processes, and the processing method is to first set the positioning on the punching mold.

Then, a piece of rubber magnetic piece is snapped into the positioning pin, and the operator presses the punch start button simultaneously with both hands to perform punching. After the punching is completed, the product is taken out from the mold, and another piece of rubber magnetic piece is caught in the positioning groove or positioned. In the pin, carry out the next die cutting.

In actual use, the rubber magnetic sheet is first fed by the air feeder pallet, sequentially passes through the stopper wheel, the moving splint and the fixed clamping plate, and is placed on the work table on one side of the punch slider, so that the punch slider can punch it Cut; properly adjust the air feeder stopper wheel to position the rubber magnetic sheet.

The first fixed plate and the second fixed plate of the air feeder further clamp the rubber magnetic sheet to prevent wrinkles and affect the punching effect.

After the punching slider completes the punching, it moves upwards and drives the guiding plates to move upward together, and the guiding plate releases the air feeder floating rod.

At this time, the floating rod transmits the release signal to the time relay again through the control button, and the time relay first controls the lifting cylinder to drive the first moving clamping plate to move upward and return to the initial position, and the first moving clamping plate releases the rubber magnetic sheet.

The time relay then controls the telescopic cylinder to drive the second moving splint to move toward the bracket, returning to the initial position, and thus repeating, fully automated stamping processing.

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

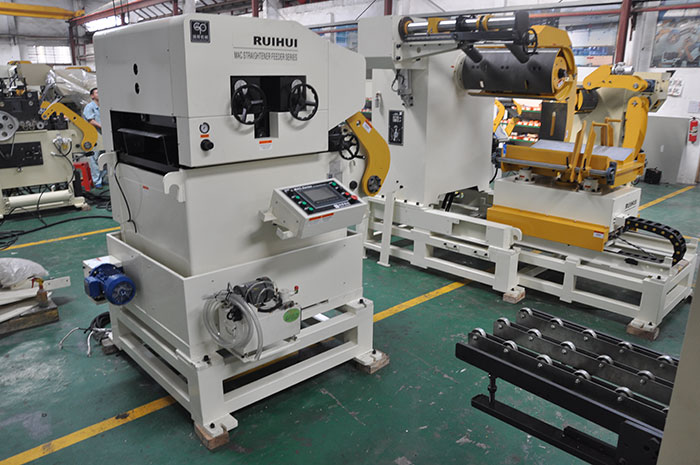

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.

Why choose us?

1^st,We have a high level of technical research and development team;

2^nd,We can provide the design and planning of the whole plant to realize the turnkey project;

3^rd, our philosophy: quality is the social responsibility;

4^th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;

5^th,We have a highly effective after-sales service team and get customer approval.
