    Automatic NC Feeder Equipment , Metal Sheet Straightening Machine Ss Wafer Processing

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Automatic NC Feeder Equipment , Metal Sheet Straightening Machine Ss Wafer Processing


    Automatic NC Feeder Equipment , Metal Sheet Straightening Machine Ss Wafer Processing


    Yaw NC feeder Scope of application: Ruihui yaw NC feeder is suitable for the processing of wafers, such as steel, copper, aluminum, special alloys and bimetals. The applicable material thickness ranges from 0.3 to 3.0mm. The applicable material width is up to 1800mm, and the maximum diameter of the blank is 1000mm.


    Performance characteristics of the yaw NC feeder:

    1. Two-way alternating feeding, high output, maximizing material saving. The yaw NC feeder can be moved several times according to the diameter of the wafer blank to ensure the round cutting and cutting, maximizing the utilization of the material. If the size of the blank is not equal, the row can be automatically aligned. The cloth angle is calculated to ensure maximum material savings.


    2. high-precision feeding, improve the precision of wafer cutting. A set of Mitsubishi PLC is used to control the electronic control system of two sets of Yaskawa servo motors. One servo motor system is connected with the feed roller by the synchronous pulley to achieve precise control of the feed roller.


    Another set of servo motor system is connected with Taiwan's Shangyin precision roller screw with synchronous belt pulley to complete precise left and right movement. In the continuous stamping process, the minimum distance between sides and sides can be set within 0.5mm, and the yaw feed Machine feed error can be controlled within ±0.08MM to meet increasingly high processing requirements.


    3. simple operation, high degree of automation. When the Ruihui yaw NC feeder is used, the control system of the NC feeder automatically calculates the movement and feeding after inputting the width of the material, the diameter of the required blank, and the feeding step on the 7-inch Weilun touch screen. The distance, no need to adjust any mechanical mechanism, truly achieve full automation operation.


    products:

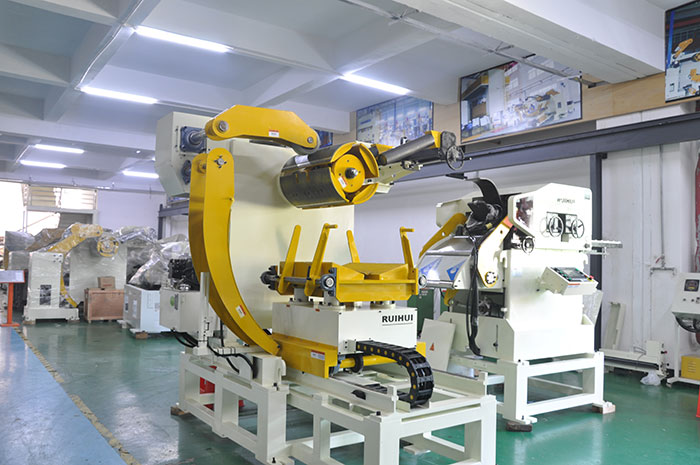

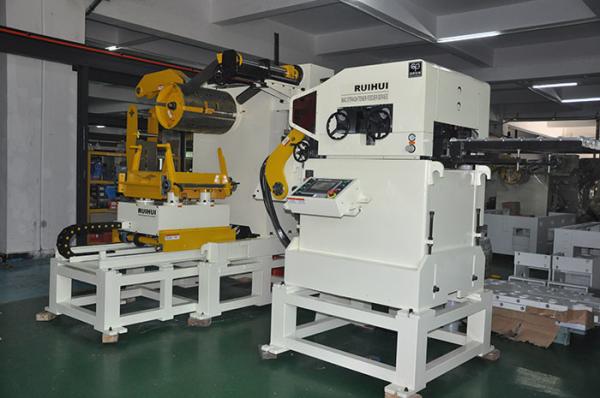

    NC feeder

    NC feeder


    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
    2. After-Sales service:We have an efficient team to meet 24*7 all day service.
    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
    4. Engineers can provide service machinery overseas.
