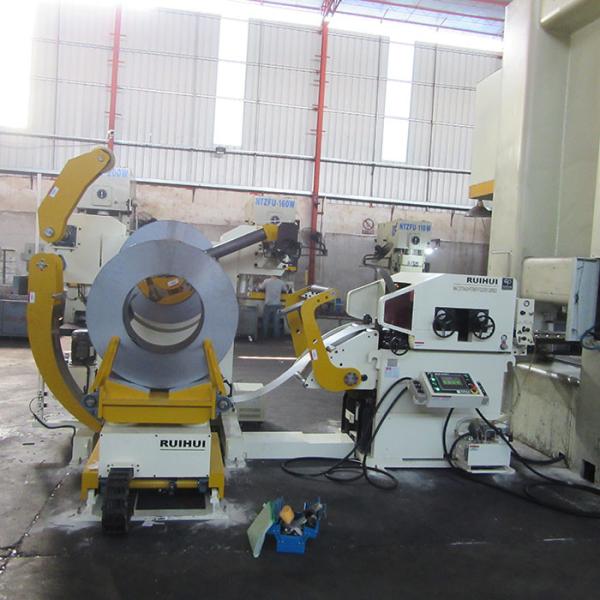

    NC Servo High Speed Feeder Automation Equipment Stainless Steel Tube Stamping

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    NC Servo High Speed Feeder Automation Equipment Stainless Steel Tube Stamping


    NC Servo High Speed Feeder Automation Equipment Stainless Steel Tube Stamping

    The NC servo feeder has stable performance and extremely low failure rate. It is only the best stamping equipment. In actual use, the occurrence of faults is still inevitable. The NC servo feeder is no exception. The most common fault is the unstable transmission distance. In the event of such a failure, timely targeted treatment is required to prevent the loss of stamping production caused by inaccurate feeding.

    The unstable transmission distance of the NC servo feeder is also called infeed, which will greatly affect the quality of the finished stamping.

    1. The setting speed of the NC servo feeder is too fast: the NC servo feeder is not capable of high-speed feeding due to the response time of the electronic control system. Generally, the maximum feeding speed of the pneumatic NC servo feeder is 60-120 times per minute.

    The maximum feeding speed of the mechanical NC servo feeder is 150-200 times per minute. If the actual punching speed is higher than this speed, the NC servo feeder will not be able to keep up, resulting in the wrong material.

    2. the external air source pressure is too large or not enough: NC servo feeder to achieve fast, stable relaxation requires a stable supply of gas, its three-point combination pressure gauge needs to be adjusted to 4.5kg / cm2, treatment method: check three points Check if the combination pressure gauge is damaged and adjust the compressor pressure.

    3. The feeding height of the NC servo feeder is not correct: the punching machine often needs to be used with multiple sets of different molds. The height of different molds can also be different. At this time, the feeding height of the feeding machine needs to be adjusted after changing the mold. If the adjustment is not correct, The feed will be skewed and uneven. The treatment method is to adjust the feeding height of the feeder to keep it horizontal and vertical with the mold.

    4. There is error in the punching die itself or no material trimming: if the punching die itself has problems in design and production, it will also cause the sending distance to be unstable. At this time, the NC servo feeder can be used for feeding, but the manual manual feeding test is adopted. Hit the product and check if the problem is on the mold itself. If it is, correct the mold.

    5. There is stamping oil on the feeding roller of NC servo feeder: stamping production In order to prevent the long-term friction between material and mold, the die life is damaged and the stamping precision is not accurate. Usually, the material is stamped with oil before the material enters the mold. If the oil enters between the feeding rollers, the feeding slip will be inaccurate. At this time, the feeding roller can be cleaned and wiped.

    6. The feeding time of the NC servo feeder is set incorrectly: different molds have different feeding time requirements for the feeder. If the feeding time is set too late, the feeding will be insufficient. At this time, the feeding signal cam angle of the punching machine needs to be re-adjusted.

    7. The NC servo feeder's relaxation time is not correct: if the relaxation time is not correct, the material feeding will not be in place or the material will be retreated. At this time, the relaxation signal cam angle of the punching machine needs to be re-adjusted.

    products:
    NC servo feeder
    NC servo feeder

    specifications

    ModelStock Width (mm)Coil Weight (kg)Motor
    (kw)
    Pressing ArmCoiling block expansion modeMaterial ID (mm)Material OD (mm)
    ME-20070-2005000.375PneumaticManual/Hydraulic508930
    ME-30070-3008000.75PneumaticManual508930
    ME-40070-40010000.75PneumaticManual/Hydraulic508930
    ME-50070-50015001.5PneumaticManual5081200
    ME-600100-60030001.5PneumaticManual5081200
    ME-800100-80050002.2PneumaticManual5081200


    FAQ:
    Q1:What kinds of machines do you have?
    Our main products are:Nc Servo Roll Feeder,Uncoiler, Straightener, 3 in1 Straightener Feeder,Transfer systems,Press Feeding Line., etc
    Q2:Is your equipment standard or customized?
    Both, we can OEM & ODM with customers.
    Q3:What are your equipments certification?
    All our items are coming with CE certifications.
    Q4:How did your company's quality system work?
    "QUALITY IS OUR CULTURE" Our quality is not the best in the world, and the price is not the cheapest. But we can provide you excellent products to defeat your competitors.
    Q5:How long is the warranty period of the machine?
    We offer free service with a warranty period of one year, If it is operate in reasonable, the machine can be used more than 10 years.
    Q6: Is it possible to be a foreign agent and distributor?
    If you are confidence and excellent service for after-sales, then welcome to be our agents or distributors all over the world.
    Q7:What's your payment?
    T/T,D/P,L/C,Western Union., etc
    Q8:What's the delivery?
    "TIME IS GOLD" for you and for us, so we have professional team work and production line can make nice quality in short time.

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
    2. After-Sales service:We have an efficient team to meet 24*7 all day service.
    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
    4. Engineers can provide service machinery overseas.
