    Super 3 In 1 Feeder , 3 In One Feeders Metal Coil Punch Processing Equipment

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Super 3 In 1 Feeder , 3 In One Feeders Metal Coil Punch Processing Equipment


    Super 3 In 1 Feeder , 3 In One Feeders Metal Coil Punch Processing Equipment


    The 3-in-1 feeder adopts a unique mechanical and electrical structure and is equipped with a fully automated CNC control system. The servo motor is used to drive the feeding roller to efficiently and automatically feed the material. It is usually used for full automation of medium and thick plate coils. Unwinding, leveling, and feeding.


    Installation of multi-package optoelectronics: The discharge speed of the 3-in-1 feeder directly affects the flattening effect and service life. Multiple sets of photoelectric induction control the unwinding speed, which can change the unwinding speed of the material rack from time to time, and the unwinding is more stable, achieving the purpose of completely discharging the material with the leveling feeding head.


    Replace the traditional A-type iron with the stopper arm: the traditional material frame, the material rack and the leveling machine are discharged by the A-type iron fixed coil material, the loading is cumbersome, and the edge of the rack is worn, which greatly reduces the effective work. time. The configuration of the baffle arm simplifies the loading of the coil and solves the problem of the wear of the edge of the coil.


    Equipped with leveling and feeding head device: 3 in 1 feeding machine leveling, feeding head feeding, traditionally adopting manual pushing method, high labor intensity and high risk, especially when the material thickness is large, it often needs 3-5 People come to assist the feeding, and some even need to use the crowbar, the material is easy to rebound and hurt people.


    Equipped with worm gear motor head lifting device: 3-in-1 feeder feeding line height adjustment Traditional use manual adjustment mode, slow adjustment, time-consuming and laborious, and Ruihui mechanical 3-in-1 feeder adopts four-point independent worm synchronous transmission mode The adjustment is fast, stable and reliable, which effectively shortens the debugging and debugging time.


    Products:

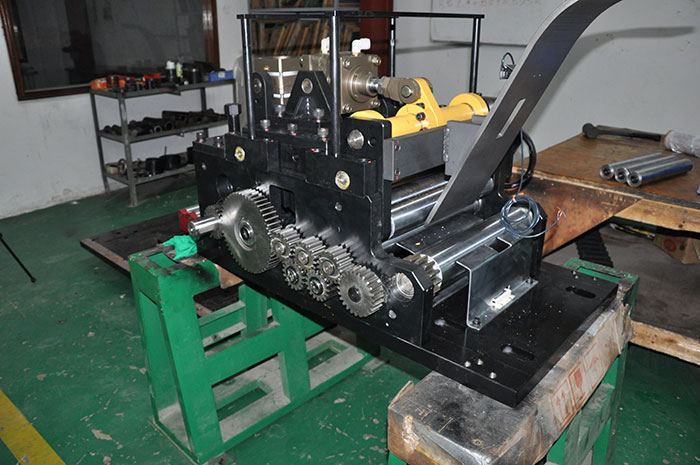

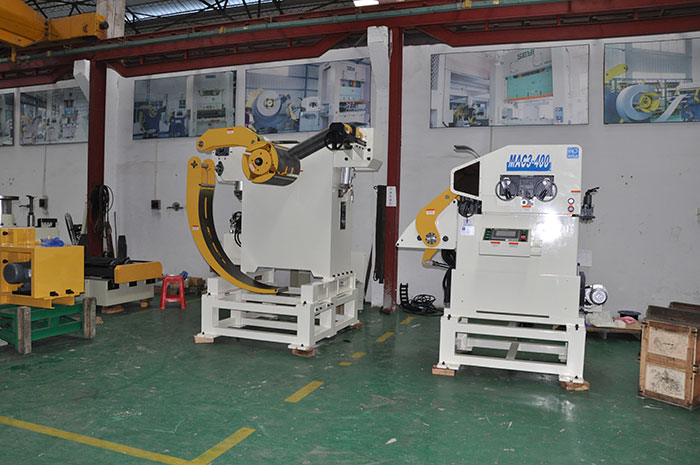

    feeding machine

    feeding machine


    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
