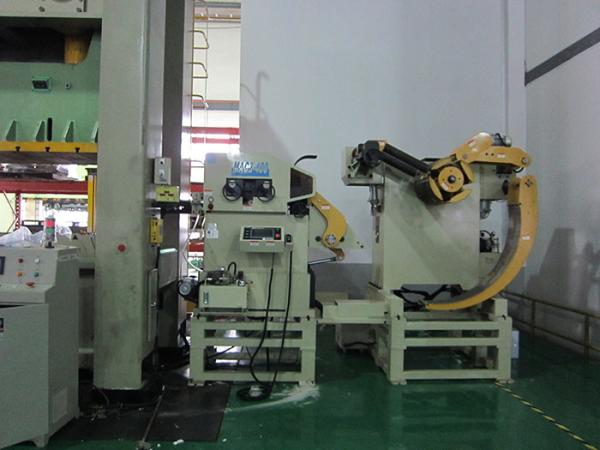

Heavy material rack, sheet metal discharging, Ruihui automation equipment

The heavy-duty material frame is a special equipment for discharging and unwinding metal sheets. It can be combined with a variety of automation equipment to form unwinding, leveling, stamping production lines, sheet shearing production lines and other sheet product production lines.

Heavy-duty material racks are widely used by stamping customers due to their large load capacity, simple operation, high degree of automation, and low failure rate. However, the standard heavy-duty material rack has an obvious drawback: it needs to manually shake the handle to expand the coil. Labor intensity is great.

Especially when the material is thick and the material is heavy, the artificial material often cannot completely expand the material, and the material is detached when the material is fed by the unwinding, which is easy to cause a safety accident. When the material is thick, there is a lack of the pressing device, and the coil material will be seriously scattered. The material phenomenon affects the overall stamping production efficiency.

The hydraulic heavy-duty material frame is a highly efficient and practical material frame specially developed and produced by Ruihui Machinery for heavy-duty thick plate coil discharging and unwinding.

The hydraulic heavy-duty material frame is equipped with a hydraulic pressure expansion and contraction device at the end of the main drive shaft of the material frame, which is composed of a hydraulic cylinder, a piston rod, a shrinking and retaining plate, a sliding sleeve after expansion and contraction, a pre-shrinking and sliding, and a shrinking frame. The board and the support tile are composed.

It is an upgraded and improved version of the traditional heavy-duty material frame. It converts the hand-rolling expansion and contraction structure into a hydraulic station-type oil pressure expansion and contraction method, and installs a pressing device on the material frame frame to perform real-time on the coil material. By the above-mentioned improvement, the expansion of the coil material and the stable and efficient unwinding can be quickly achieved.

Products:

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.

Why choose us?

1^st,We have a high level of technical research and development team;

2^nd,We can provide the design and planning of the whole plant to realize the turnkey project;

3^rd, our philosophy: quality is the social responsibility;

4^th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;

5^th,We have a highly effective after-sales service team and get customer approval.
