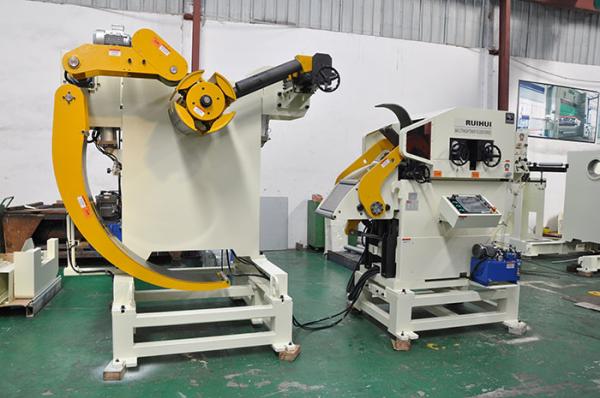

    Roller Feeder Metal Sheet Straightening Machine For Tinplate Die Stamping

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Roller Feeder Metal Sheet Straightening Machine For Tinplate Die Stamping


    Roller Feeder Metal Sheet Straightening Machine For Tinplate Die Stamping


    In the actual use process, the roller feeder has extremely stable performance and extremely low failure rate. However, in the long-term use of the roller feeder, if the operation is not correct or the necessary maintenance and maintenance are lacking, the fault will still be quite a lot.


    Therefore, during the operation and use of the roller feeder, the material thickness, feeding time, delivery distance and relaxation position of the feeder should be adjusted in strict accordance with the operating rules on the instructions of the Jinzhide roller feeder.


    Then, after the inching test and the single-action test, the continuous production can be carried out. At the same time, in daily use, the maintenance of the feeder should be done regularly, so as to fundamentally eliminate the failure of the feeder and ensure its long-term stability. Continuous stamping production to maximize customer benefits.


    In addition to the correct operation of the roller feeder, regular maintenance is also indispensable:


    1. Before the roller feeder is running daily, it is necessary to carefully check the feeder first to ensure that there is no chipping or foreign matter in the gear contact part, the cross joint has no wear, the friction shaft contact surface is not worn, the pressure plate is not blocked, and The bolts (rocker screws, press springs) of each component are not loose.


    2. After the press is changed, the adjustment screw on the mounting plate should be adjusted to the roller feeder to adjust the feeding height. The adjustment principle is slightly lower than the lower mold of the comparable mold, and the material cannot be introduced into the mold guide column first. Adjusting the height of the feeder, this method can easily damage the mold.


    3. Before running the feeder, it is necessary to carry out the trial die after the normal operation, and then carry out continuous stamping and feeding. During the operation of the feeder, it is necessary to pay attention to whether the delivery distance is accurate and whether the material is skewed. If it is found that there is abnormal feeding, it should be stopped immediately for inspection and re-commissioning.


    4. After the delivery of a roll of material is completed, it is necessary to stop the punching machine in time to avoid the punching machine accidentally puncturing the mold.


    5, the roller feeder should be lubricated regularly (usually once a month), and the wear and tear of spare parts caused by long-term work should be contacted with Jin Zhide mechanical technicians for replacement.


    Products:

    punching machine

    punching machine


    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
