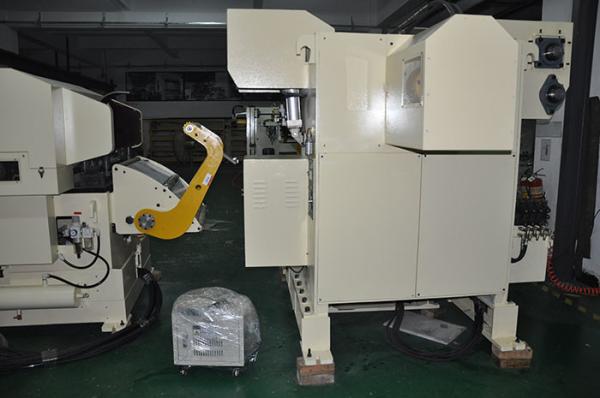

Automated stamping, metal coil die processing, material air feeder

Between the 0. 1-0. 5mm. Between the 0. 1-0. 5mm. Between the 0. 1-0. 5mm.

In addition, relying on manual feeding for positioning, not only the accuracy is affected by human factors, but also the production efficiency is very low, the scrap rate is high, therefore, this method is not suitable for mass production, so there is an urgent need for an efficient and practical feeding device to achieve continuous stamping. The purpose of production.

The air feeder is the earliest and most economical feeding equipment in the stamping industry. It can realize automatic stamping production with minimal investment.

The air-feeding machine-based stamping production line is usually from left to right by a heavy-duty material rack that unwinds the unwinding, a leveling machine that flattens out the material that is unrolled, an air feeder that is automatically fed with a punching machine, and an air feeder that is automatically fed. A precision die consisting of a continuous die.

In actual use, a roll of metal coil of a certain width is placed on the heavy-duty material rack, and the handle is rotated and rotated to realize tension and relaxation. Its main function is to discharge and unwind the coil.

The leveler leveles the web by a leveling roller on which the misalignment is arranged. The feeding accuracy of the air feeder can reach 0. 01mm, and the step of feeding can be adjusted. It uses compressed air to clamp and move the coil and can control the moving step through the solenoid valve.

It is connected by a solenoid valve and a slider of the punching machine. When the slider is at the top dead center, the automatic air feeder clamps the coil material to the first position in the continuous mold, and then the punch presses the stamp, and the slider returns again. At the top dead center, the feeder clamps the coil material into the continuous mold and feeds it to the second position, thereby achieving fully automated stamping production.

Products:

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.

Why choose us?

1^st,We have a high level of technical research and development team;

2^nd,We can provide the design and planning of the whole plant to realize the turnkey project;

3^rd, our philosophy: quality is the social responsibility;

4^th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;

5^th,We have a highly effective after-sales service team and get customer approval.
