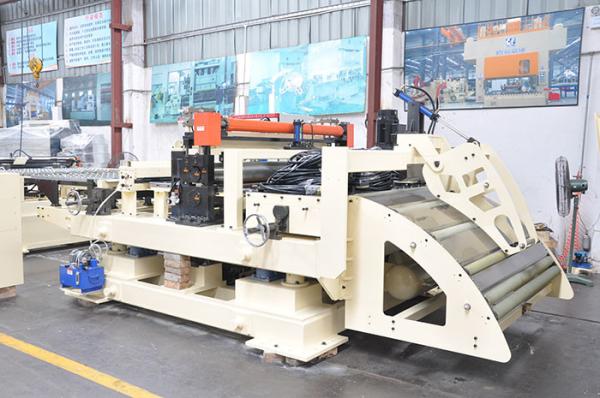

NC servo feeder, metal mold material, stamping automatic feeding equipment

The NC servo feeder is driven by a servo motor - with a punch cam signal, and the servo motor provides a feeding action synchronized with the punch.

Because it has the advantages of simple operation, easy adjustment of the delivery distance, convenient adjustment and actuation, and no need to install the shaft end of the punching machine, it has become the mainstream feeding equipment in the automatic production of stamping.

NC servo feeder operating principle: a stamping stroke for the slider position starts from the top dead center, and returns to the top dead center after the bottom dead center. The NC feeder uses the non-machining time in the stamping process to push the feed to a fixed feed pitch to achieve the material-by-station stamping effect.

The contact angle between the mold and the material is the forming zone, and the rest is the non-forming zone.

The NC feeder uses the punch cam angle setting to push the material forward in the non-forming zone.

When the mold stamps the material, the material is positioned and fixed by the mold material positioning pin, and then the relaxation angle of the material is set by the punch cam angle to allow the feeder to relax the material to increase the material stamping positioning accuracy.

Since the feeding zone and the forming zone do not interfere with each other, continuous punching can be used to achieve efficient production capacity.

The NC servo feeder can freely set the feeding distance. The feeding distance is related to the punching SPM and the feeding angle setting. If the feeding is not timely, the punching machine and the feeder will be stopped urgently.

The NC feeder not only supplies and pushes materials quickly and accurately, but also makes the stamping process safer and reduces the labor burden. Related specifications and equipment: material width, thickness, surface requirements, feeding direction, height, speed, material relaxation mode, feeding memory, multi-stage feeding function, material end detection, yaw feeding, etc.

Products:

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.

Why choose us?

1^st,We have a high level of technical research and development team;

2^nd,We can provide the design and planning of the whole plant to realize the turnkey project;

3^rd, our philosophy: quality is the social responsibility;

4^th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;

5^th,We have a highly effective after-sales service team and get customer approval.
