Automation equipment, sheet metal processing, automation equipment

The NC servo feeder is a new type of automation equipment designed for complex stamping processes. It has a significant advantage over the roller feeder. It can feed multiple steps in the same stamping process on one punch press. produce.

To meet the diversified production needs of customers, and the feeding parameters are freely controlled by the customer through touch screen programming, the operation is simple and the performance is high. The electronic control system composed of servo motor has the highest feeding accuracy, high applicability and reliability.

NC servo feeder advantages:

1. Intuitive and convenient operation mode: The NC feeder adopts a 7-inch touch screen with a button dual-control operation mode, which can easily and quickly complete the setting of the feeding parameters.

2, the feeding step setting is not limited: the traditional roller, air feeder step adjustment has a range of use, and the servo feeder is completely free of any mechanical restrictions, can be arbitrarily set between 0-10 meters through the touch screen , greatly improving the scope of application of the device.

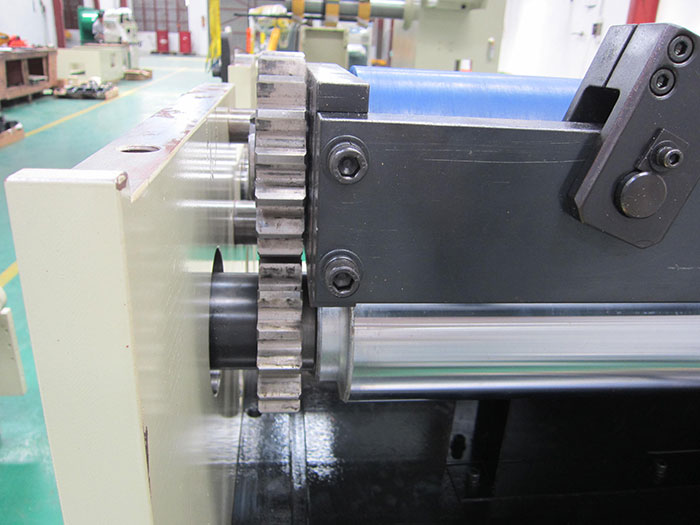

3. The feeding is accurate and does not damage the material: the servo motor drives the lower roller through the synchronous pulley, and the lower roller completes the feeding through the gear driving upper roller, ensuring the synchronization of the roller and the uniformity of the material pressure, and avoiding the accurate feeding while avoiding The production of material indentations and scratches.

4. a variety of relaxation methods to choose from, to meet the needs of different customers: there are two kinds of relaxation options: pneumatic relaxation and mechanical joy relaxation. Customers can choose according to their own mold and stamping characteristics.

5. with push and pull two feeding methods: for thin sheet soft material can be assembled into a pulling method, the drawing is accurate, and fundamentally avoid scratching the material.

6. unique feeding parameter storage function, fast and automatic production: can store multiple sets of feeding parameters in the feeder according to demand, when the corresponding mold is replaced, can be directly called, greatly reducing the downtime debugging time.

Products:

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

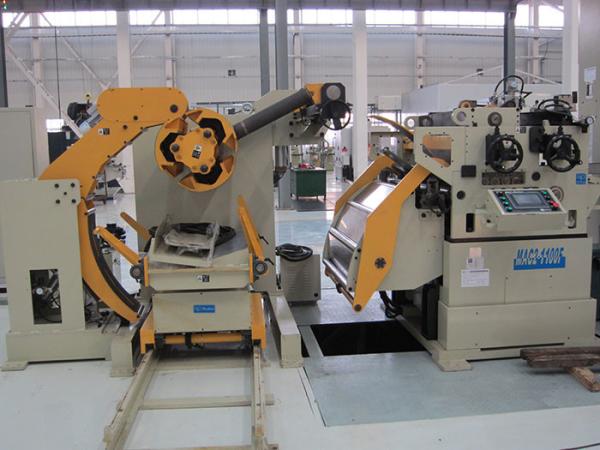

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.

Why choose us?

1^st,We have a high level of technical research and development team;

2^nd,We can provide the design and planning of the whole plant to realize the turnkey project;

3^rd, our philosophy: quality is the social responsibility;

4^th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;

5^th,We have a highly effective after-sales service team and get customer approval.
