Heavy-duty material frame stamping equipment, carbide materials, material racks

The heavy-duty material frame is the most used material discharging and unwinding equipment in stamping production. It controls the length of the material through the speed of the material frame controlled by the time relay, and automatically controls the length of the material through the height of the induction rod to realize and follow the whole process. Simultaneous processing of the flat machine, easy operation, large load capacity, high degree of automation, greatly improving the efficiency of stamping production.

The heavy material frame consists of a frame, a reel, a spindle, an adjusting device, a sliding guide, a back wheel, a driving device, and a control box.

In actual use, the material frame handle is rotated counterclockwise, and the axial movement of the adjusting screw rod drives the four-bar linkage mechanism and the fan-shaped supporting material plate plate connected thereto, so that the diameter of the reel is reduced and the coil is loaded.

Turn the handle of the material frame clockwise to hold the material roll, complete the material feeding, the motor drives the coil to rotate and transport the coil, control the opening and stopping of the material frame through the induction rod, and delay the time relay connected by the induction rod. The effect controls the discharge speed and controls the material discharge length through the height of the sensing rod.

When the operator uses the heavy material frame for stamping production, it is not necessary to operate the machine frequently to control the material transportation, fully automatic operation, compact structure, small floor space, low failure rate, high work reliability, and effectively solve the stamping production. The problem of unloading and unwinding.

Products:

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

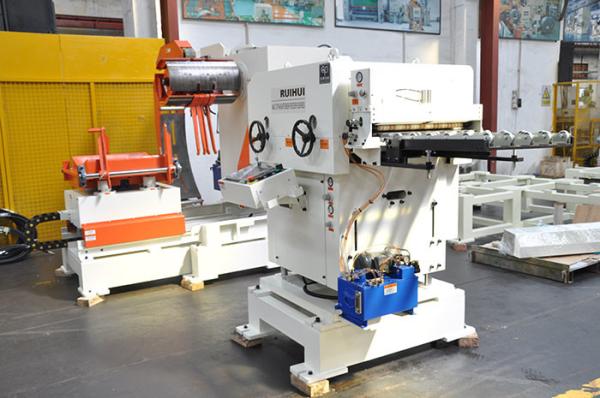

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.

Why choose us?

1^st,We have a high level of technical research and development team;

2^nd,We can provide the design and planning of the whole plant to realize the turnkey project;

3^rd, our philosophy: quality is the social responsibility;

4^th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;

5^th,We have a highly effective after-sales service team and get customer approval.
