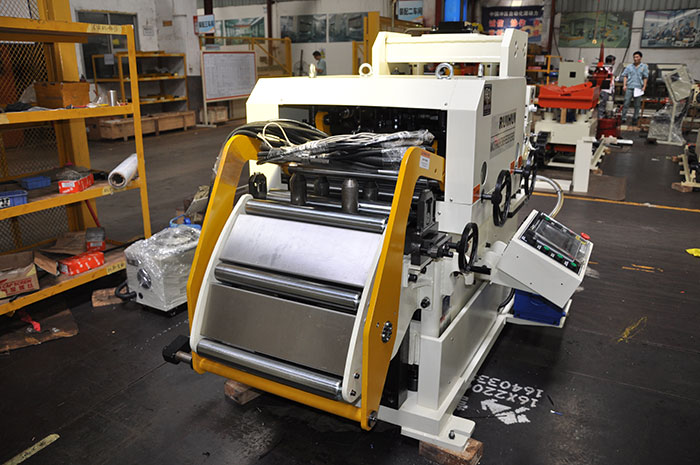

    Metal Strip Unwinding Equipment , Double Head Material Rack Punch Feeder

    Metal strip unwinding equipment, double-head material rack, punch feeder


    The unwinding equipment for metal strips is mostly used in the production line for cantilevered single-roller heavy-duty material racks. In some production lines, in order to increase annual output and improve production efficiency, two racks are equipped.


    One is used in the main production line and the other is used in the auxiliary production line, while the auxiliary production line needs to be placed in a vertical plane with the center of the main production line, so that the auxiliary production line needs to be placed above or below the main production line.


    As a result, infrastructure will be added, and some expansion shovel, plywood, and guide platform auxiliary equipment will be added, which will increase equipment investment.


    The double-head material frame is a new type of material frame specially developed to improve the efficiency of the stamping production line. It adopts a double-axis structure and has two operating stations. One operating station unwinds and feeds, while the second operation station It does not rotate and is used for the operator to feed while another roll is unrolled.


    The two stations can be rotated 180° in situ for quick interchange when needed, which greatly saves refueling time, saves equipment investment and reduces the footprint of the production line.


    Ruihui's improved hydraulic double-head material frame pushes the axial movement of the push rod through the oil cylinder, so that the connecting seat pulls the inner roller of the link type coiling roller, thereby driving the outer roller to move radially, changing the outer diameter thereof, thereby Tighten the material.


    When the hollow main shaft rotates, the link type reeling roller and the connecting seat rotate at the same time, and the push rod and the oil cylinder do not rotate due to the action of the thrust ball bearing and the bearing, thereby avoiding the oil leakage phenomenon of the oil cylinder, which is beneficial to prolonging the service life thereof.


    Moreover, due to the supporting action of the two bearings, the axis of the cylinder and the axis of the hollow main shaft are always consistent, which can further extend the service life of the cylinder and even the entire double-head material frame.


    Products:

    material frame

    material frame


    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
