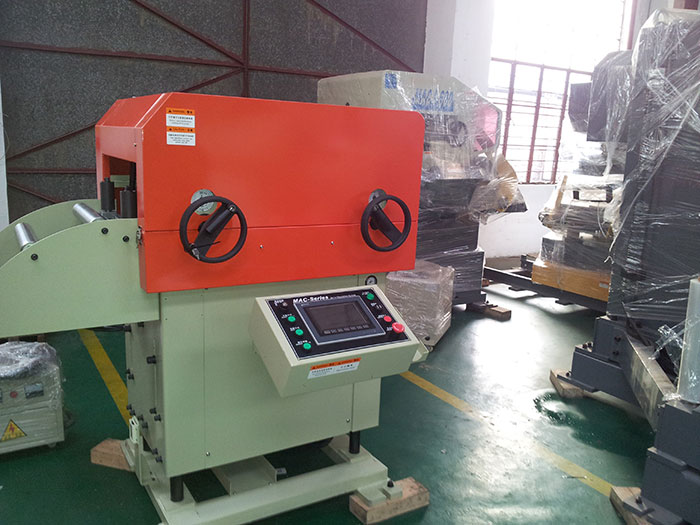

Steel bending straightening machine, stamping production line, heavy material rack

In the heavy-duty stamping production line, the hydraulic heavy-duty material rack is arranged in parallel with the centering line of the punching machine in front of the leveling machine, the feeder and the punching machine for carrying the coil material and completing the unwinding operation of the coil material, and forming and controlling the material during the unwinding process. After the tension.

The improved heavy-duty material frame rotary joint is connected with the external hydraulic pipeline to use a two-layer steel high-pressure hose with a diameter of 38mm and a length of 1500mm. The connection point is selected in the straight section near the rotary joint, and is fixed so as not to affect the movement of the material frame. The stroke and spindle rotation are subject to change.

The matching clearance between the rotating joint shaft and the bushing is controlled to be 0.04-0.06 mm. The matching precision is high, so that the rotary joint bushing and the material frame swing synchronously.

Change the original 5mm oil drain hole of the rotary joint bushing to two holes of 7mm in the circumferential direction. The pressure of the internal drain fluid is reduced, so that the internal drain fluid can be discharged in time, eliminating the external leakage accident.

The skeleton oil seal adopts a high-quality oil seal which is tightly combined with the skeleton and has good rubber flexibility, which fundamentally solves the problem of frequent oil leakage of the rotary joint, and greatly reduces the material frame failure and the later maintenance cost.

Products:

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.

Why choose us?

1^st,We have a high level of technical research and development team;

2^nd,We can provide the design and planning of the whole plant to realize the turnkey project;

3^rd, our philosophy: quality is the social responsibility;

4^th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;

5^th,We have a highly effective after-sales service team and get customer approval.
