    Hydraulic Heavy Material Rack Punch Decoiler Straightener Feeder Automatic Leveling Uncoiler

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Hydraulic Heavy Material Rack Punch Decoiler Straightener Feeder Automatic Leveling Uncoiler

    Hydraulic heavy material rack, punch automatic feeder, leveling uncoiler

    The hydraulic heavy-duty material frame with the trolley is mainly composed of a rack, a trolley, a receiving frame, a hydraulic system and an electrical system.

    The trolley and the loading frame are designed to facilitate the loading and unloading of materials. The hydraulic system ensures the convenience of material handling, and the electrical system is to better ensure its accuracy and reliability.

    Structural features of hydraulic heavy-duty material frame with trolley:

    1. The main shaft adopts the oil pressure expansion system to tighten the material and has a large tightening force and good safety.

    2. The end of the spindle is in the form of a support arm, and the double cylinder is used for stretching to improve stability.

    3. The automatic pressure-holding function is provided when the rack is automatically operated.

    Installation points for hydraulic heavy-duty material frame with trolley:

    1. If there is anti-rust oil on the machine, please be sure to remove it. And add lubricant to the fueling part.

    2. Please refer to the electrical diagram assembly for the power supply line of this machine.

    Products:

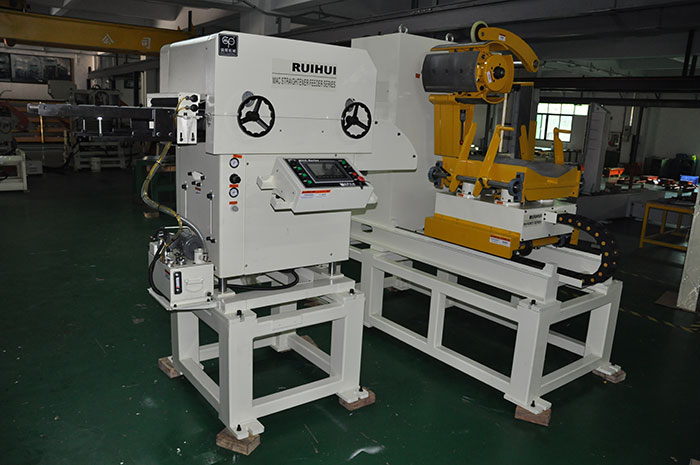

    material frame
    material frame


    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
