    Metal Plate Leveling Decoiler Straightener Feeder 3 In 1 Material Frame Pressing Arm

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Metal Plate Leveling Decoiler Straightener Feeder 3 In 1 Material Frame Pressing Arm

    Material frame pressing arm, metal plate leveling feeder, 3-in-1 feeder


    3-in-1 feeder use precautions

    1. Pressing arm part: When the material is placed on the rack, be sure to press the press arm and keep the press arm in the automatic state as much as possible, keep the automatic pressure maintaining function, and then remove the material packing strap. In addition, please control the arm.

    2. Feeding feed arm press arm: The feed press arm has internal control of the touch screen. Controlling the feed press arm is the key to ensure smooth entry of the material into the machine head. Be sure to familiarize yourself with the operational procedures.

    3. Leveling part: When the material is thicker and has a certain width, please increase the air pressure to make the leveling effect better.

    4. Shelf part: When loading, please keep the material center line and the center of the rack, that is, the center line of the mold, so as to avoid the phenomenon of bias.

    Products:

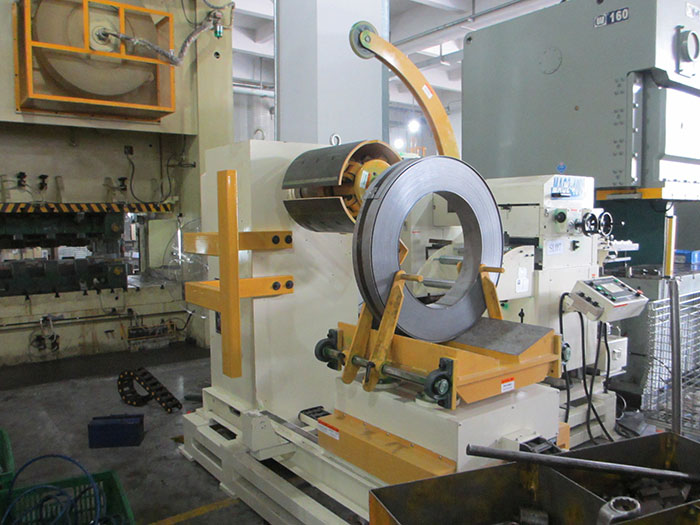

    rack

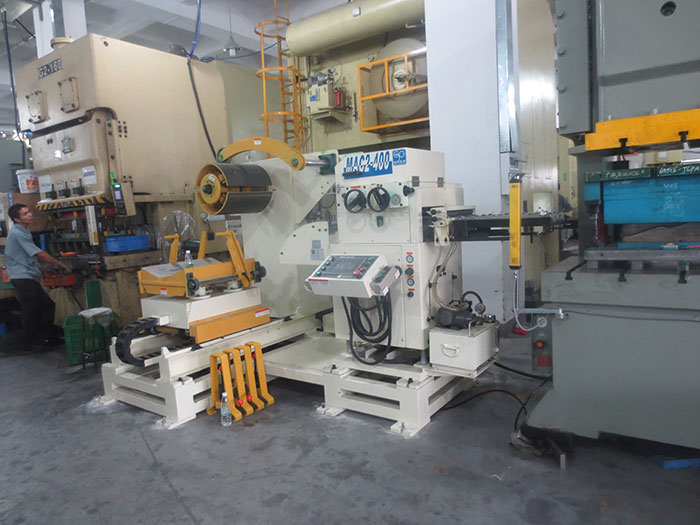

    rack
    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
