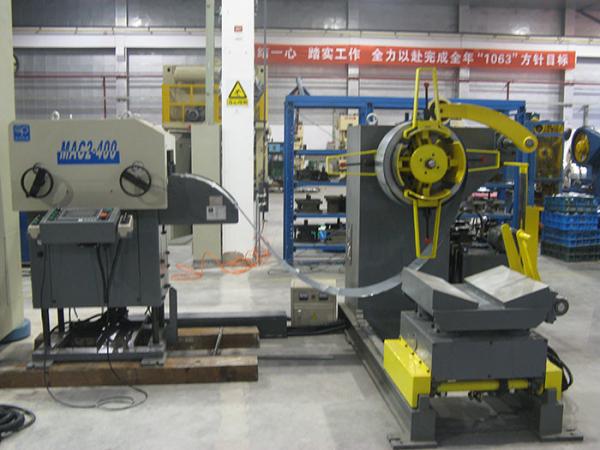

Stamping production line, leveling roller, 3-in-1 feeder leveling machine

The coil material used in the stamping production line will be exposed to dust or debris during storage, transportation and use, and then the flattening roller of the 3 in 1 feeder leveling mechanism will be rolled for a long time.

It is often transferred to the surface of each drum or dropped into the mechanism. Therefore, it is necessary to carry out the cleaning work on the surface and the mechanism of each drum after the leveling operation for a period of time, so that the leveling mechanism can perform smooth rolling and leveling operations.

Thus, the feeder 3 in 1 Ruihui leveling head structure are designed to replace the traditional open bolt fastening, do not need the use of tools for both open leveling operation of the handpiece.

Upon completion of cleaning of dirt and debris within a short time a fast operation, for a long time indeed to maintain leveling accuracy of the material and extend the life and precision of the leveling means, the feeder 3 in 1 reduction and maintenance costs.

When the 3-in-1 feeder is used, the linear actuator of the leveling mechanism is in the retracted position, and the bottom surface of the active rod pressure-reducing support acts as the bottom edge of the movable groove, so that the upper roller group bracket is lowered to fit the lower roller group bracket.

The upper end of the long hole of the inter-section link pushes the lever, and the outer side of the long-hole of the elastic link is moved, and the hook and the hook are elastically relaxed, and the buckle is hooked into the buckled bevel of the buckle block to make the upper roller set The fixed pair covers the lower roller set.

Products:

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.
