    Metal Foil Roll Stamping Receiving Punching Press Machine Automated Production Line

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    Model Number : MAC2-600
    Price : Negotiable
    • Product Details
    • Company Profile

    Metal Foil Roll Stamping Receiving Punching Press Machine Automated Production Line

    Stamping automated production line, receiving machine, metal foil roll


    At present, the commonly used receiving machine in the stamping automatic production line only has a turntable mechanism to collect the stamped strip, for example: metal foil coil material, when the material is stamped, the entire strip is formed.


    It is directly conveyed to the receiving tray on the turntable mechanism via the conveying device, and the take-up and receiving operation is performed by the receiving tray. When the tape is collected to a certain length, it is manually cut by the cutting device.


    The horizontal automatic receiving machine can achieve the purpose of accurately collecting the tape, eliminating the need for segmentation, saving human resources and shortening the time for charging the tape, thereby improving the efficiency.


    The horizontal automatic receiving machine is composed of a detecting device, a conveying device, a lifting device, a tape mechanism and a power mechanism.


    When in use, firstly, the charging length of the tape is preset on the control panel of the fully automatic receiving machine, and the seat plate of the conveying device is formed in series with the upper turntable of the tape winding mechanism, and when the tape winding mechanism is operated, the volume is The upper turntable with mechanism starts to rotate.


    The upper turntable can be rotated in the forward and reverse directions, so that the empty receiving tray of the upper turntable starts to perform the winding and receiving operation. At this time, the lower turntable of the take-up mechanism is stopped, and the strip after punching is empty. The receiving tray rotates.


    It is transported by the detecting device to the conveying device, and then transported to the empty receiving tray by the conveying device. When the upper dial rotates too fast or too slow, or the strip is broken in the middle, it is sensed by the detector of the detecting device.


    The sensed signal is transmitted to the control device, causing the control device to adjust the speed of the upper turntable or to stop the operation of the entire receiver to avoid damage to the receiver.

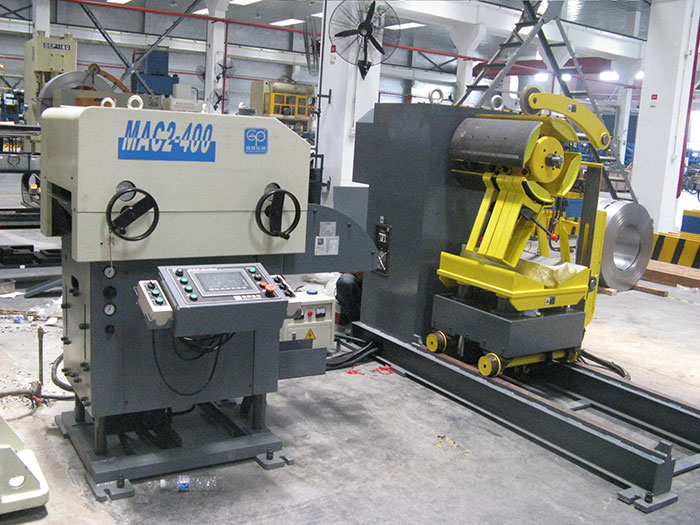

    Products:


    punching

    punching

    Specification:


    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:


    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi


    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
