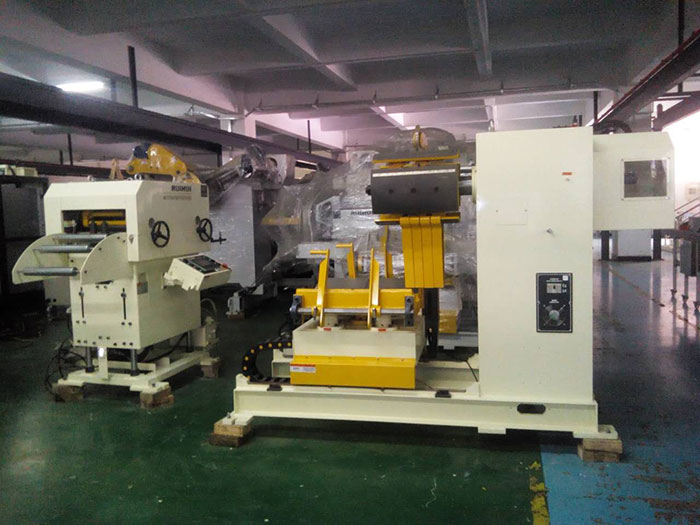

    Punch Automatic Feeding Equipment , NC Leveller Feeder Sheet Metal Stamping Processing

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    Model Number : MAC2-600
    Price : Negotiable
    • Product Details
    • Company Profile

    Punch Automatic Feeding Equipment , NC Leveller Feeder Sheet Metal Stamping Processing

    Punch automatic feeding equipment, sheet metal stamping processing, NC feeder


    The air feeder is powered by an external source of compressed air. The five-hole valve is operated by a lever on the punching mold frame to control the direction of the compressed air to achieve intermittent feeding. The advantage is that the structure is simple and low cost.


    Roller feeder: It uses the crankshaft eccentric shaft to drive the drawbar, and the drawbar pulls the rocker arm of the roller. In order to convert the reciprocating motion of the drawbar into a one-way feed motion, a one-way motion mechanism is set. In order to prevent the roller from retreating, a brake device is provided. The advantage of the roller feeder is that the process is mature and affordable.


    NC feeder: It is a roller feeder driven by a servo motor. The utility model has the advantages of convenient operation, multi-stage feeding, high feeding precision, and capable of conveying sheets of any length.


    Gear Feeder: It converts the rotation of the press through a precision splitter into intermittent rotation, which in turn pushes the roller feed. The advantage is that it has good synchronization performance with the punching machine and can meet the requirements of high-speed precision feeding.


    Clip Feeder: It is an eccentric shaft driven pull rod that transmits power to the crankshaft linkage of the feeder, and is converted into a reciprocating motion in the feeding direction, supplemented by synchronous gas valve and cylinder clamping sheet feeding. The advantage is that it can adapt to the requirements of high-speed feeding and is convenient to adjust.


    Products:

    Gear Feeder

    Gear Feeder


    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
