Automated heavy material rack, unwinding leveling machine, metal sheet stamping

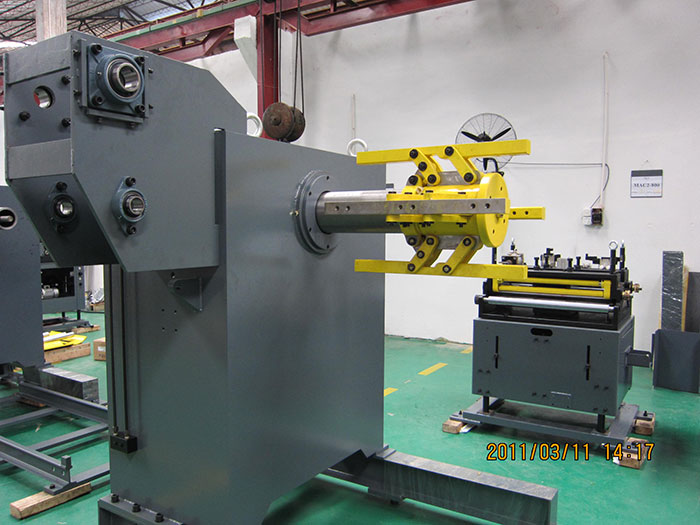

Under the work of the heavy-duty material frame power transmission mechanism, the main shaft is rotated, and the disc, the sliding sleeve and the sliding sleeve position adjusting mechanism are rotated, and the cantilever shaft is carried by the sliding sleeve, and then the cantilever shaft carries the coil material to complete the unwinding of the coil material. Feed and feed to the subsequent leveler or feeder.

When there is redundancy in the material to be delivered, the material will be sensed by the sensor frame due to falling, and the signal is fed back to the electrical control box by the sensor frame to temporarily stop the motor, and vice versa.

When the entire coil is used up, first remove the coil limit A-type iron, then operate the handle to shrink the cantilever shaft, and lap the other roll onto the tray, then connect the above operation can.

Therefore, during the whole process, the heavy material rack operator only needs to be responsible for placing the coil material on the tray and the corresponding operation of the handle and installing the coil limit A-type iron as needed, and once it enters the working state, it is fully automatic. The unwinding feed can save labor and reduce labor intensity, and can greatly improve the overall stamping efficiency.

At the same time, since the coil material is fastened to the tray of the cantilever shaft and protected by the A-type iron pipe, there is no swimming and swaying phenomenon, and the unwinding feeding effect of the coil material is ensured.

Products:

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.

Why choose us?

1^st,We have a high level of technical research and development team;

2^nd,We can provide the design and planning of the whole plant to realize the turnkey project;

3^rd, our philosophy: quality is the social responsibility;

4^th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;

5^th,We have a highly effective after-sales service team and get customer approval.
