    Aluminum Profile Stamping Processing Air Feeder Punch Automatic Feeding Device

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Aluminum Profile Stamping Processing Air Feeder Punch Automatic Feeding Device

    Aluminum Profile Stamping Processing Air Feeder Punch Automatic Feeding Device


    When the air feeder is actually assembled, one end of the main body is fixed on the workbench on one side of the punching slider, and the main body is provided with a floating rod. Above the floating rod, a guiding board fixed at one end of the punching slider is arranged, and the guiding board is in the punching slider. The floating rod is pressed or released by the up and down reciprocating motion.


    Since the air feeder is connected with a time relay, the receiving signal for controlling the lifting cylinder and the telescopic cylinder is delayed for a certain period of time, and the guiding plate completes the feeding process of the material during the release of the pressing floating rod.


    The guide plate completes the resetting process of the drive unit during the compression release of the floating rod. The positioning baffle is provided with a feeding length fine adjustment screw, which can adjust the material feeding process according to actual needs.


    The guide plate completes the resetting process of the drive unit during the compression release of the floating rod.


    The air feeder presses and releases the floating rod by the upper and lower reciprocating motion of the punching slider, so that the floating rod transmits the signal of pressing and releasing to the time relay and controls the driving device, thereby realizing continuous automatic feeding.


    Therefore, it effectively replaces the manual feeding, which not only avoids the various drawbacks and unsafe factors of personnel operation, but also greatly reduces the labor intensity, improves the safety factor, and significantly improves the production efficiency, which can be realized by automatic feeding.


    Accurate positioning and equidistant feeding.


    Therefore, the generation of the edge material can be reduced in the stamping molding process, which not only improves the utilization rate of the material, but also saves the production cost.

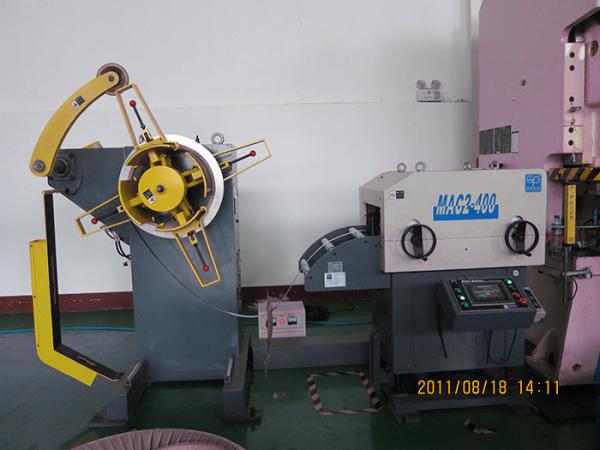

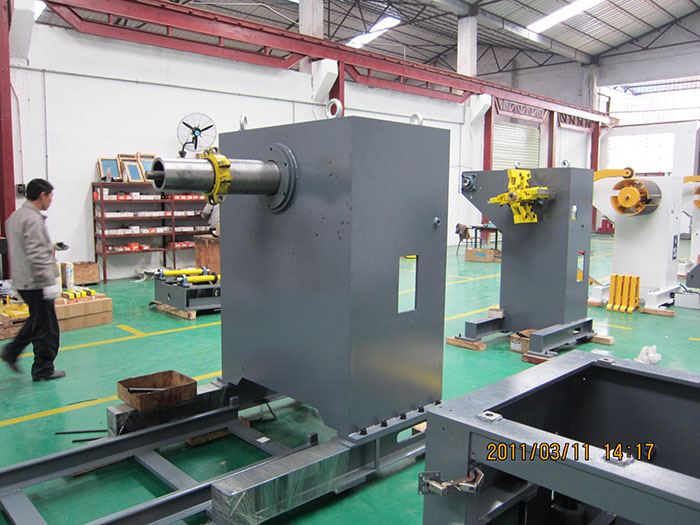

    Products:

    air feeder

    air feeder


    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
