    Durable NC Servo Feeder , Automatic Feeding Equipment Metal Sheet Stamping Processing

    NC servo feeder, metal sheet stamping processing, automatic feeding equipment


    NC servo feeder is the first choice for customers because of its simple operation, high feeding accuracy, low failure rate, and the advantages of air and roller feeders.


    At present, there are many manufacturers of domestic feeders, which are often encountered. The difference between the same NC feeders is very large, which brings great trouble to customers.


    From the technical requirements:


    (1) The type of NC feeder is selected by the thickness of the material. At present, the NC feeders produced in China are divided into thin plates 0-2.2mm, medium plates 0-3.2mm, and thick plates 0-4.5mm according to the thickness of the material. Kind, the thicker the thickness can be achieved, the higher the price.


    (2) Select mechanical relaxation and pneumatic relaxation according to the speed and the matching equipment.


    (3) Brand and power of servo motor and PLC: The stability and accuracy of NC feeder are not only the machining and assembly quality of the machine itself, but also depend on the servo motor and PLC used by the machine.


    (4) End detection: NC feeder is mainly used for continuous stamping production. When feeding to the last material less than one step, if the NC feeder is still feeding automatically, it will easily cause mold damage.


    The end detection is when the material is insufficient. Control the feeder to stop automatically.

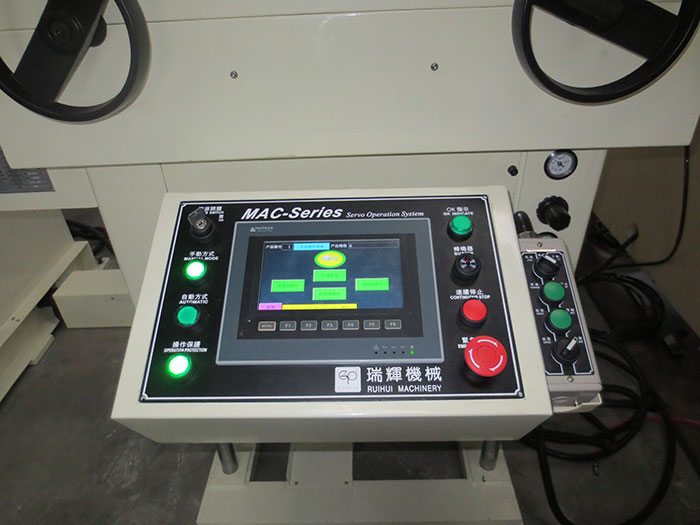

    (5) Selection of man-machine interface: NC feeder has button type, 3.2 inch touch screen type, 7 inch touch screen type, and there are many brands of touch screen. The mainstream is Taiwan Weilun and Japan Mitsubishi, customers can choose according to their own needs.


    (6) The appearance of the whole machine.


    Products:


    machine

    machine


    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
