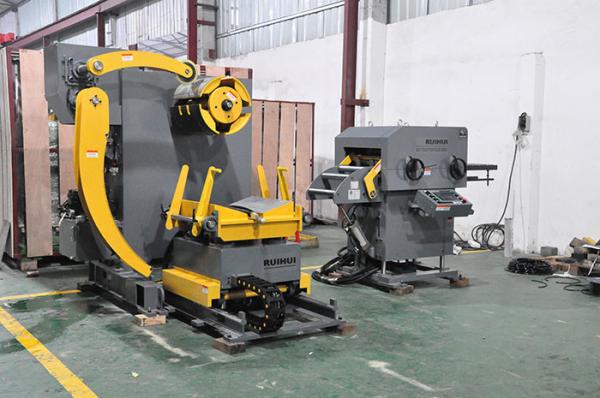

    Metal Roofing Leveling Decoiler Straightener Feeder Machine , High Speed NC Feeder

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Metal Roofing Leveling Decoiler Straightener Feeder Machine , High Speed NC Feeder

    For metal roofing machine, leveling machine feeder, NC feeder
    NC feeder improvement:

    1. NC itself to achieve multi-stage feeding, memory 20 memory programming, and can adjust the number of feeding.

    2. According to the customer's requirements, realize 3 sets of output control, control the action of the solenoid valve, and realize the action change of the mold. This process has a short changeover time and does not affect the action of the punching machine.

    3. In the aspect of punching shifting: three sensors are used to control the shifting of the punching machine, that is, the sensor is installed in the groove, and when the material falls within the range of a certain sensor, the speed of the punching machine is controlled, but the process is followed. Punch inverter matching.

    4. On-line: Two feeders and molding machines are connected. The NC feeder's operation panel can be individually started and stopped, and the respective punches are controlled to stop. In addition, on the online control panel, each machine can be started separately. Downtime can also be controlled across the board.

    Products:

    punching machine
    punching machine

    Specification:

    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:

    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
