    Punch Press Leveling Decoiler Straightener Feeder Machine Sheet Metal Flattening Material

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Punch Press Leveling Decoiler Straightener Feeder Machine Sheet Metal Flattening Material

    Sheet metal flattening material, punch press leveling machine, metal machine


    Before the press stamping production, the sheet coil material is pretreated to eliminate the internal stress of the material itself, thereby obtaining the flat material required for the stamping forming process.


    The leveling machine flattens the material by means of the misalignment of the upper and lower drums.


    Usually, we define the degree of lowering of the upper and lower rollers as the leveling amount. The leveling amount directly affects the leveling effect of the leveling machine on the material.


    The size of the leveling needs to be comprehensively adjusted according to the actual conditions such as material thickness, material material, material width, and material deformation.


    Therefore, it is necessary to add a leveling adjustment device which is stable and reliable, flexible in adjustment, wide in application range, and easy to operate in the leveling machine.


    The thick plate leveling machine adopts the advantages of the adjustment of the worm gear:


    1) Stable structure: The worm gear and worm in the leveling adjustment device are compact in structure, balanced in transmission, and have a self-locking function of reverse stroke. Due to the installation of the one-way thrust ball bearing, it can withstand axial force, the guide is stable, and can withstand high impact and other effects;


    2) Wide application: the worm gear structure in the leveling adjustment device can withstand a large load. When the leveling machine is applied to different material requirements, the adjustment range is very wide, which can meet various needs, and the worm and worm independent device Can be installed on a variety of large, heavy-duty large and medium leveling machines;


    3) Convenient operation: This leveling adjustment device adjusts the handwheel on the side instead of the top, directly faces the operator, the operation is user-friendly, and the dial on the worm gear mechanism is convenient for adjusting the leveling of the upper and lower rollers.


    Products:

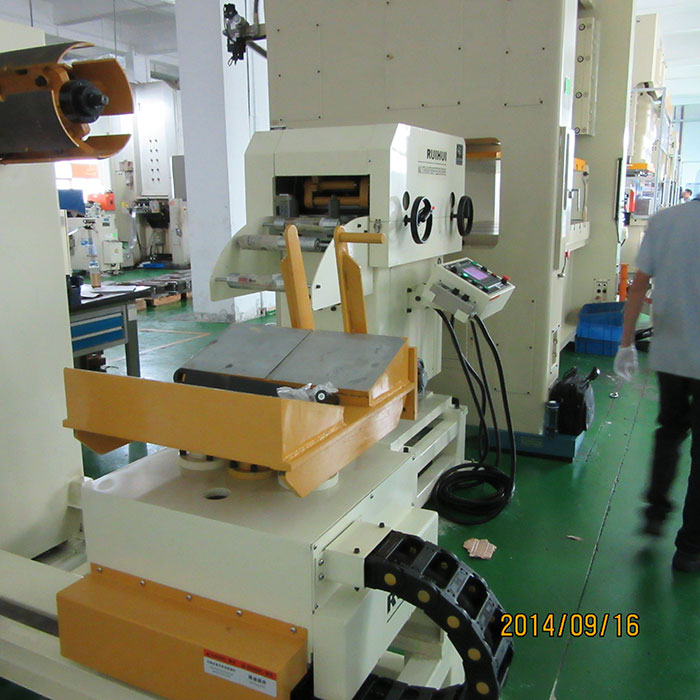

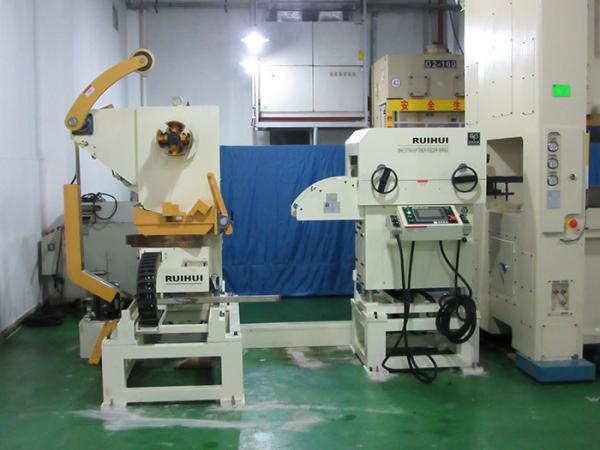

    leveling machine


    leveling machine


    Specification:


    ModelMAC2-400MAC2-500MAC2-600MAC2-800
    Stock Width(mm)50-40050-50050-60050-800
    Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
    Max.Coil Weight(kg)300030003000500050007000
    Max.Coil O.D.(mm)120012001200
    Coil I.D.(mm)88508508
    Feed Length(mm)~500*~500*~500*~500*
    Max. Line Speed(m/min)16-2416-2416-2416-24
    Work Roll Number(pieces)upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    upper 6
    lower 5
    Feed Roll Number(set)1111
    Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
    Mandrel Expansionhydraulichydraulichydraulichydraulic
    Reel Motor(kw)1.51.51.52.22.23.7
    Power(V)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straigtening performance:


    tock Thicknees (mm)Stock Width (mm)
    0.3400500600800
    0.4
    0.6
    0.8
    1.0
    1.2
    1.4
    1.6470470
    1.8400400
    2.0360360
    2.3300300300300
    2.5230230230230
    2.8150150150150
    3.2110110110110


    *1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi


    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
