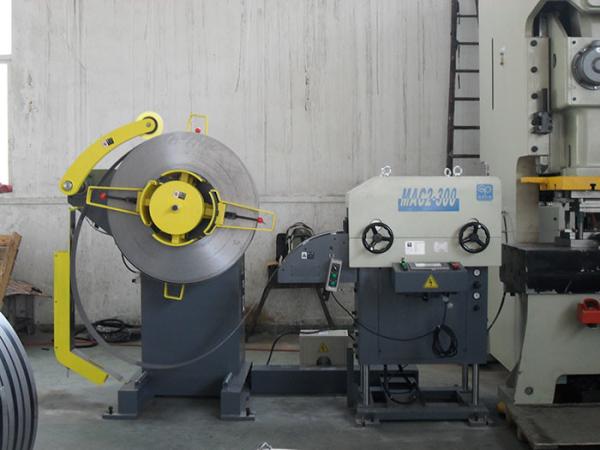

Steel plate roll material straightening machine, material frame stamping, parts feeder

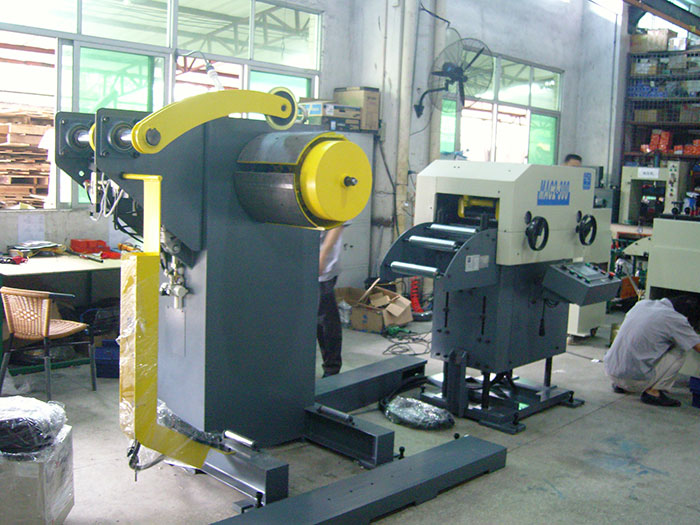

The hydraulic heavy-duty material frame is a common supporting facility for heavy-duty stamping production lines. It has two functions. One is to support the material by tensioning the inner diameter of the coil material; the other is to drive the material through the rotation of the main shaft of the rack. Feed into the follow-up machine (leveler or feeder).

The completion of the tension is achieved by pushing the lever with the cylinder mounted with the spindle; the completion of the rotation is achieved by the motor rotating the spindle through the reducer.

The cylinder mounted on the main shaft of the rack should run synchronously with the main shaft, and the two cylinders of the cylinder end need to be connected to the hydraulic station. Therefore, a special device is required to realize one end of the fixed end.

Improvement of heavy material shingles

The expansion and contraction reel of the heavy-duty material frame consists of four tiles, leaving gaps between the plates for expansion and contraction. Ordinary heavy-duty material shingles are long straight seams. During operation, it is found that due to the large curvature of the steel strip tail, the gap between the shingles is often inserted, and the shingles are hooked, causing damage to the equipment.

When designing and producing heavy-duty material racks, Ruihui Machinery changed the tile to the scraped staggered tile. The tile and the tile are interdigitated and interlaced, and the length of the staggered straight seam is less than the minimum bandwidth, which avoids damage to the material frame by the tailings.

Specifications:

Straightening Performance:

Products:

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.
