Brand Name : | RUIHUI |
Certification : | CE, ISO certification |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 30 Sets Per Month |
Delivery Time : | 30 work days |

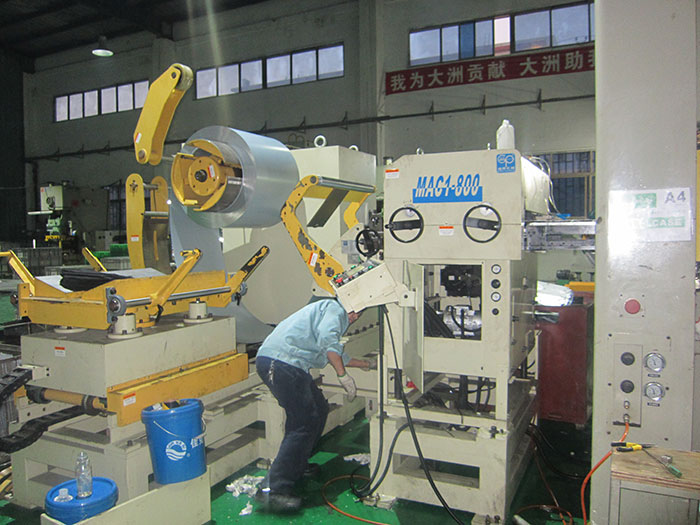

NC feeder feeding accuracy, servo mechanical transmission, punch processing technology
Compared with the roller feeder and the air feeder, the NC feeder
has higher feeding accuracy, more stable feeding performance and
more convenient operation, and these advantages are derived from
its advanced control system.
The control system of the NC feeder consists of PLC, servo system
and touch screen. PLC can improve the stability of the control
system and enhance the anti-interference ability of the system.
The servo system can accurately position the mechanical movement
and improve the accuracy of the mechanical transmission. The touch
screen can visually display and modify the parameters of the NC feeder, simplifying the field operation.
PLC is the core component of NC feeder. Ruihui NC feeder is equipped with Mitsubishi PLC as standard. Its built-in
high-speed pulse output function can directly output the
quantitative pulse number to control the servo drive operation.
The servo driver controls the rotational position and speed of the
servo motor according to the number of pulses and the channel
emitted by the PLC pulse output terminal, thereby accurately giving
the feed length.
The touch screen can visually display various parameters of the
personality system, providing users with a good human-computer
interaction interface and simplifying on-site operation.
The NC feeder has two working modes: manual and automatic. When the manual
working mode is used, the servo motor can be rotated forward or
reversed. When the servo motor is automatic, the servo motor can
only rotate forward.
When in the manual mode, the ACC command is executed at the rising
edge of the servo forward signal, and the mode control data is set
to realize the rotation in the CW direction to make the servo motor
rotate forward.
On the falling edge of the servo forward signal, the INI command is
executed to stop the pulse output. The servo motor reversal can be
analogized.
When in the automatic mode, the PLC sends a preset pulse to the
servo drive, and the PLS2 (positioning) command is executed at this
time.
Specifications:
Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F |
Stock Width(mm) | 70~600 | 70~800 | 70~1000 | 70~1300 |
Stock Thickness(mm) | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 |
Max.Coil Weight(kg) | 5000 | 5000 | 7000 | 10000 |
Max.Coil O.D.(mm) | 1400 | 1400 | 1400 | 1400 |
Coil I.D.(mm) | 508 | 508 | 508 | 508 |
Feed Length(mm) | ~500* | ~500* | ~500* | ~500* |
Max.Line Speed(m/min) | 16~24 | 16~24 | 16~24 | 16~24 |
Work Roll Number(piece) | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 |
Feed Roll number(set) | 1 | 1 | 1 | 1 |
Main Motor | AC7.5 | AC11.0 | AC11.0 | AC11.0 |
Mandrel Expansion | Hydrauilc | Hydrauilc | Hydrauilc | Hydrauilc |
Reel Motor(kw) | 2.2 | 2.2 | 3.7 | 7.5 |
Power(v) | 3 Phase 220V/380V/50HZ | |||
Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 |
Straightening Performance:
Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F | |
Stock Thickness (mm) | 0.8~2.3 | 600 | 800 | 1000 | 1300 |
2.8 | 933 | 933 | |||
3.2 | 714 | 714 | 714 | ||
4.0 | 457 | 457 | 457 | 457 | |
4.5 | 361 | 361 | 361 | 361 | |
5.0 | 293 | 293 | 293 | 293 | |
6.0 | 203 | 203 | 203 | 203 |
