    Automatic Yaw Type NC Sheet Metal Coil Feeder Precision Stamping Processing

    Feeder precision feeding, stamping processing automatic feeder, yaw type NC feeder


    The yaw type NC servo feeder is developed on the basis of the original ordinary NC feeder. The automatic feeding machine for stamping processing optimized by special typesetting method can realize multiple yaw to save raw materials and improve production efficiency.


    Pivot NC servo feeding range:


    It is mainly used in the processing of stamping products such as screens, caps, motor stators and rotors, hardware products, round sheets, and special-shaped sheets, especially for the production of wafer materials.


    Pivot NC servo feeding features:


    1. It adopts 7-inch super large Mitsubishi touch screen control, and has dual control modes of buttons and touch screens. The screen indication is clear and clear, and the operation is very simple.


    2. The PLC operation panel is in the independent electric box, which completely avoids the negative impact of the punch vibration on the accuracy of the feeder and ensures high-precision feeding.


    3. The yaw type NC feeder is equipped with a memory function. When the feeder is suddenly powered off or the production needs to be interrupted due to special circumstances, the program does not need to be re-measured when restarting the production. Just press the reset button to re-operate. Streamlined operational procedures.


    4. It has two kinds of relaxation methods: relaxing at both ends and relaxing one by one. It can realize multi-purpose for one machine and is suitable for different stamping processing.


    5. configure the production value setting function, simple to achieve quantitative production, high degree of automation, operation is extremely simple.


    6. feeding speed setting is simple, acceleration and deceleration can be adjusted freely on the touch screen.


    7. Advanced automatic diagnosis system, when the operation is faulty, the system can self-diagnose and display the error information in detail.


    8. It has two feeding modes of inching and continuous feeding. It can be mixed operation, X-axis (single-axis) can work independently, or X-axis and Y-axis can be linked together, and it can also be alternately fed in two axes. Saving material costs.


    NC feeder


    9. High precision: In the continuous feeding process, the minimum distance between the sides and the side can be set within 0.4mm, and the movement error of each time can be guaranteed within ±0.05mm.


    10. Material reference points can be set for easy operation.


    11. when the belt is used, no gap is produced.


    12. During the feeding process, the material is automatically repositioned, one-button operation, convenient and fast.


    13. Equipped with internal software limit function, with over-travel and overload protection, which greatly reduces the production failure.


    Specifications:

    ModelMAC4-600FMAC4-800FMAC4-1000FMAC4-1300F
    Stock Width(mm)70~60070~80070~100070~1300
    Stock Thickness(mm)0.6~6.00.6~6.00.6~6.00.6~6.0
    Max.Coil Weight(kg)50005000700010000
    Max.Coil O.D.(mm)1400140014001400
    Coil I.D.(mm)508508508508
    Feed Length(mm)~500*~500*~500*~500*
    Max.Line Speed(m/min)16~2416~2416~2416~24
    Work Roll Number(piece)upper 6/lower 5upper 6/lower 5upper 6/lower 5upper 6/lower 5
    Feed Roll number(set)1111
    Main MotorAC7.5AC11.0AC11.0AC11.0
    Mandrel ExpansionHydrauilcHydrauilcHydrauilcHydrauilc
    Reel Motor(kw)2.22.23.77.5
    Power(v)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straightening Performance:

    ModelMAC4-600FMAC4-800FMAC4-1000FMAC4-1300F
    Stock Thickness
    (mm)
    0.8~2.360080010001300
    2.8933933
    3.2714714714
    4.0457457457457
    4.5361361361361
    5.0293293293293
    6.0203203203203



    Products:

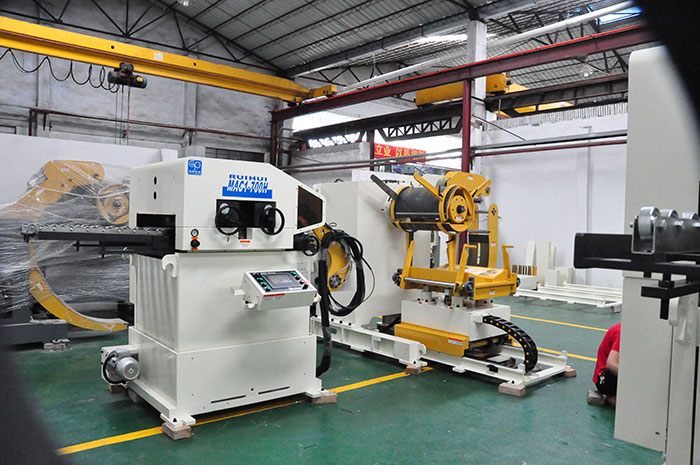

    NC feeder


    NC feeder


    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
