    Stamping And Feeding Decoiler Straightener Feeder Equipment Fully Automatic

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

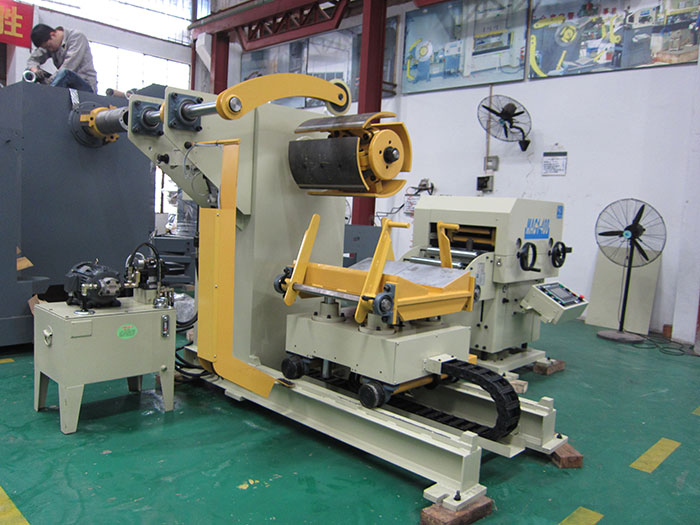

    Stamping And Feeding Decoiler Straightener Feeder Equipment Fully Automatic

    Air feeder, stamping and feeding equipment, automatic stamping and feeding equipment


    The air feeder is the earliest feeding device used in the stamping industry. Its principle is to use the air source as the power to clamp the material through the cylinder.

    Feeding is carried out by the telescopic stroke of the cylinder, and the adjustment of the feed length is controlled by the length of the stroke of the cylinder.

    Air feeder advantages: easy to operate, easy to install, affordable, and can achieve automatic stamping feeding equipment at the lowest price.

    In actual production, it is mainly used for feeding of stamping products with low precision and fast speed.
    Disadvantages of air feeder: easy to damage materials, O-ring wear has an impact on the feeding accuracy.

    The roller feeder is the most widely used feeding device at present. The principle is that the connecting rod is connected with the output shaft of the punching machine, and the punching is used to drive the operation.

    The feeding length of the feeding machine is adjusted by adjusting the yaw amplitude of the eccentric disk.
    Advantages of high-speed roller feeder: high feeding accuracy, high speed, no additional energy supply, and extremely low failure rate.

    Disadvantages of high-speed roller feeder: Due to the limited eccentricity of the eccentric disk, the maximum feeding length can only reach 300mm, and the feeding step adjustment is inconvenient. The punching machine needs the output shaft to be installed.

    Specifications:

    ModelMAC4-600FMAC4-800FMAC4-1000FMAC4-1300F
    Stock Width(mm)70~60070~80070~100070~1300
    Stock Thickness(mm)0.6~6.00.6~6.00.6~6.00.6~6.0
    Max.Coil Weight(kg)50005000700010000
    Max.Coil O.D.(mm)1400140014001400
    Coil I.D.(mm)508508508508
    Feed Length(mm)~500*~500*~500*~500*
    Max.Line Speed(m/min)16~2416~2416~2416~24
    Work Roll Number(piece)upper 6/lower 5upper 6/lower 5upper 6/lower 5upper 6/lower 5
    Feed Roll number(set)1111
    Main MotorAC7.5AC11.0AC11.0AC11.0
    Mandrel ExpansionHydrauilcHydrauilcHydrauilcHydrauilc
    Reel Motor(kw)2.22.23.77.5
    Power(v)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straightening Performance:

    ModelMAC4-600FMAC4-800FMAC4-1000FMAC4-1300F
    Stock Thickness
    (mm)
    0.8~2.360080010001300
    2.8933933
    3.2714714714
    4.0457457457457
    4.5361361361361
    5.0293293293293
    6.0203203203203


    Products:

    air feeder

    air feeder



    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
