Mechanical NC feeder feeding speed, high-speed gear replacement feeder high-precision feeding

The principle of the NC feeder is that the servo motor and the PLC control system drive the timing belt to drive the upper and lower rollers to rotate and press loose to achieve quantitative feeding.

Advantages of NC feeder: Double control mode of button and touch screen, easy to operate, servo control, higher feeding accuracy, and multi-stage feeding.

It is convenient to set the feeding length, and the maximum feeding length can reach 9999.99MM, which can realize the wide stamping industry with long feeding step.

Disadvantages of NC feeder: Pneumatic NC maximum speed is 200 beats / min, mechanical NC maximum feed speed is 250 beats / min, and the price is slightly higher.

The high-speed gear-changing feeder is a cam-driven intermittent feeding method. The change of the feed distance is changed from 2 to 4 gears.

Advantages of high-speed gear change feeder: The unique split cam mechanism and precision gear ensure high-precision, high-speed feeding.

There is no need to adjust the feed thickness, and the feed distance can be changed only by gear. The relaxation device is an eccentric cam, so the relaxation angle can be freely adjusted from 0° to 180°.

Disadvantages of high-speed gear replacement feeder: small application range and high price.

The clip feeder is driven by a cam and uses a curved cam and three plate cams to achieve high-speed and smooth feeding. Built-in inspection mechanism to detect blockage or deformation of materials.

The 165 degree feed section angle allows the material to stay longer in the press. Combined with the mold guiding pin, the release time of the material during guiding can be adjusted. It can transport round or square wires.

Advantages of the clip feeder: The feeding speed can be synchronized with the punching machine, and the speed can be as fast as 1200 times/min. The feeding precision is higher, more stable, and the machine is lighter and smaller.

Suitable for feeding processing of ultra-thin materials, such as connectors, lead frames, and inspection parts, such as high-precision and high-speed stamping.

Disadvantages of the clip feeder: generally used for material feeding in 0.1~0.5mm, the scope of application is small, and the price is relatively high.

Specifications:

Straightening Performance:

Products:

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

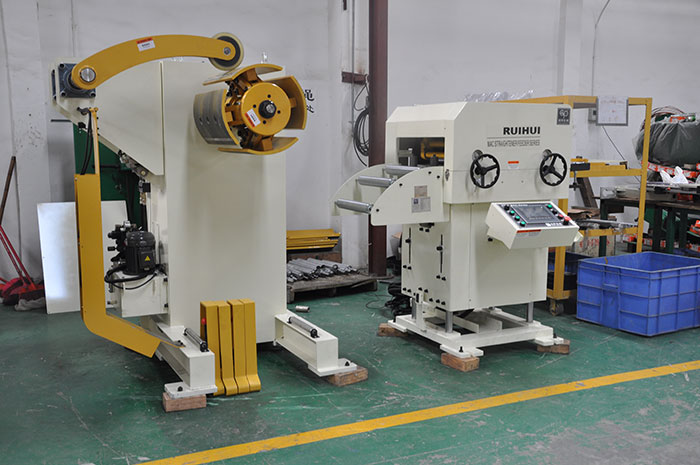

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.

Why choose us?

1^st,We have a high level of technical research and development team;

2^nd,We can provide the design and planning of the whole plant to realize the turnkey project;

3^rd, our philosophy: quality is the social responsibility;

4^th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;

5^th,We have a highly effective after-sales service team and get customer approval.
